Communication For Initializing Impossible

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

COMMUNICATION FOR INITIALIZING IMPOSSIBLE

NOTE:
- This is an inspection method for control modules using the Subaru Select Monitor communication line (Kline).
- For the control modules that read trouble code and current data using CAN communication circuit, perform diagnosis following DTCs for CAN communications.

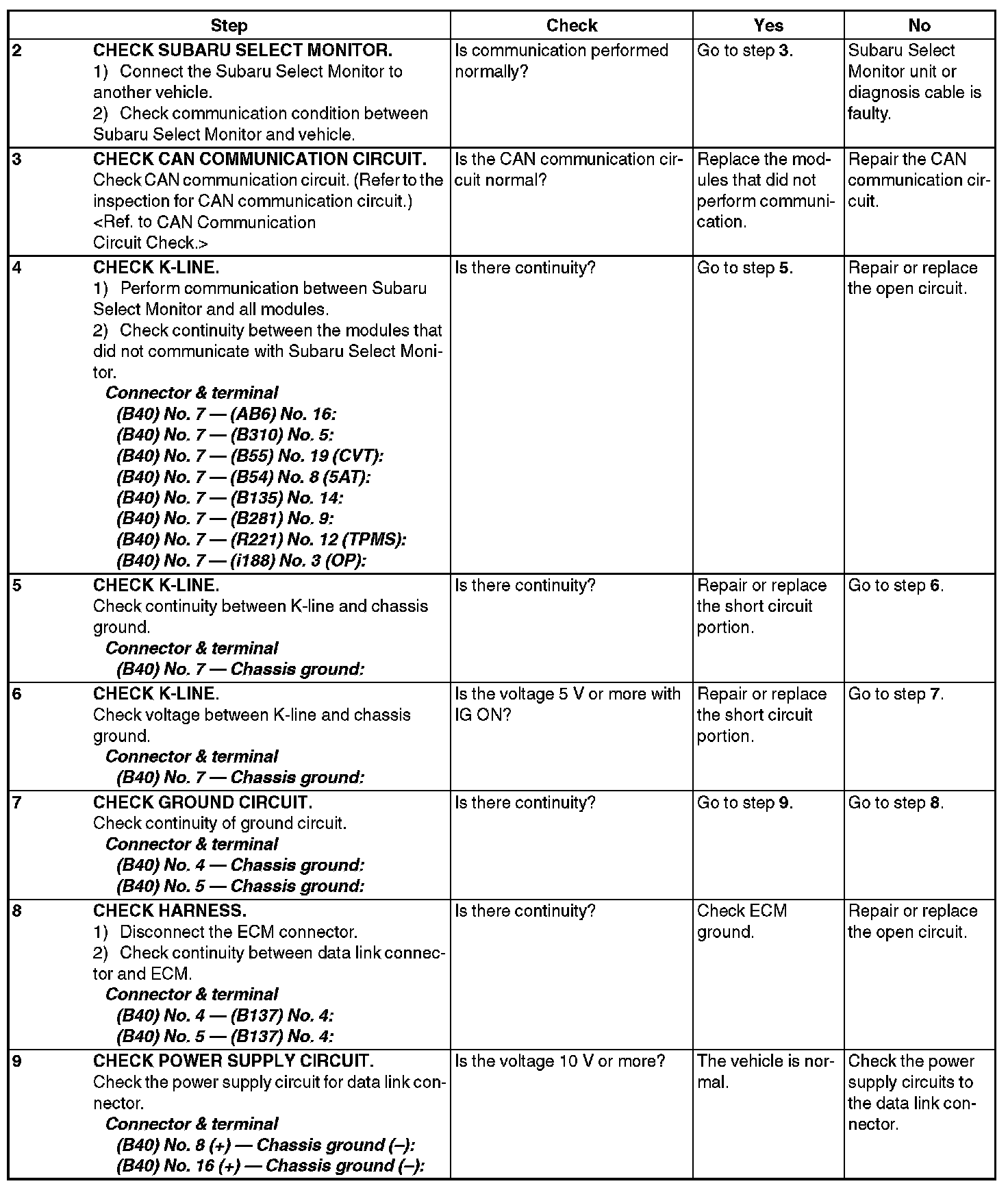

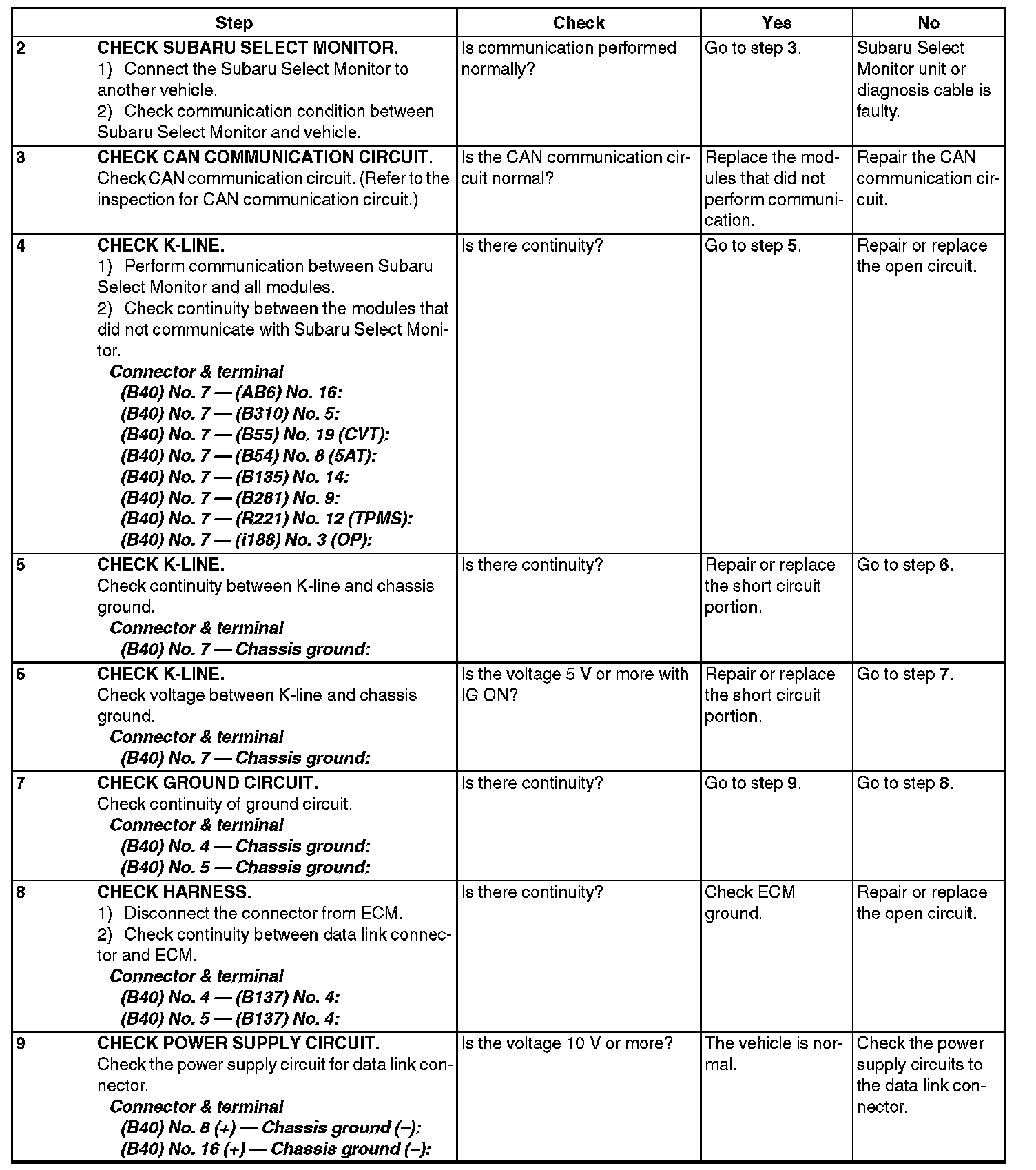

DIAGNOSIS:
Subaru Select Monitor communication line (K-line) is open or shorted.

TROUBLE SYMPTOM:
Not communicable with Subaru Select Monitor.

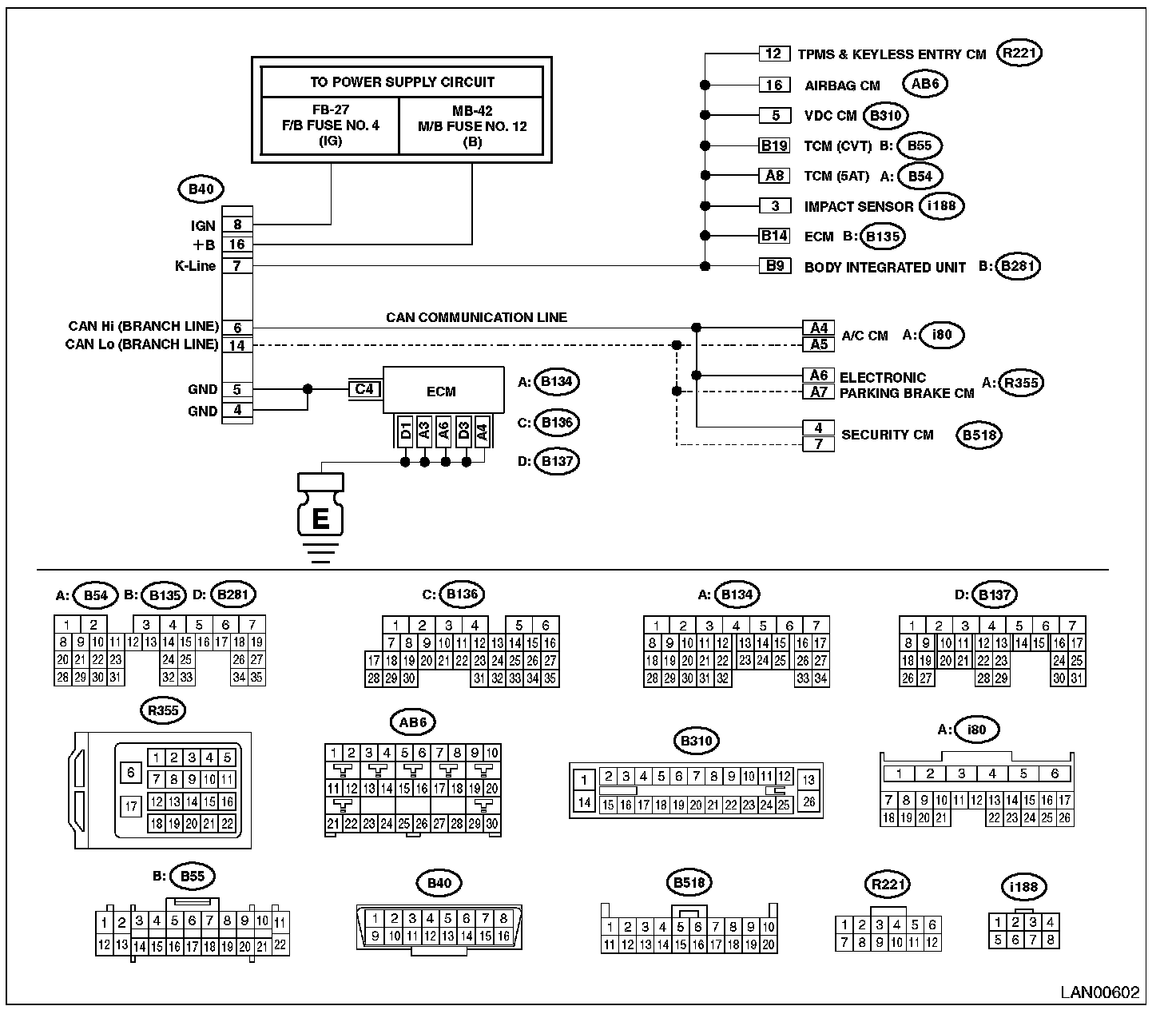

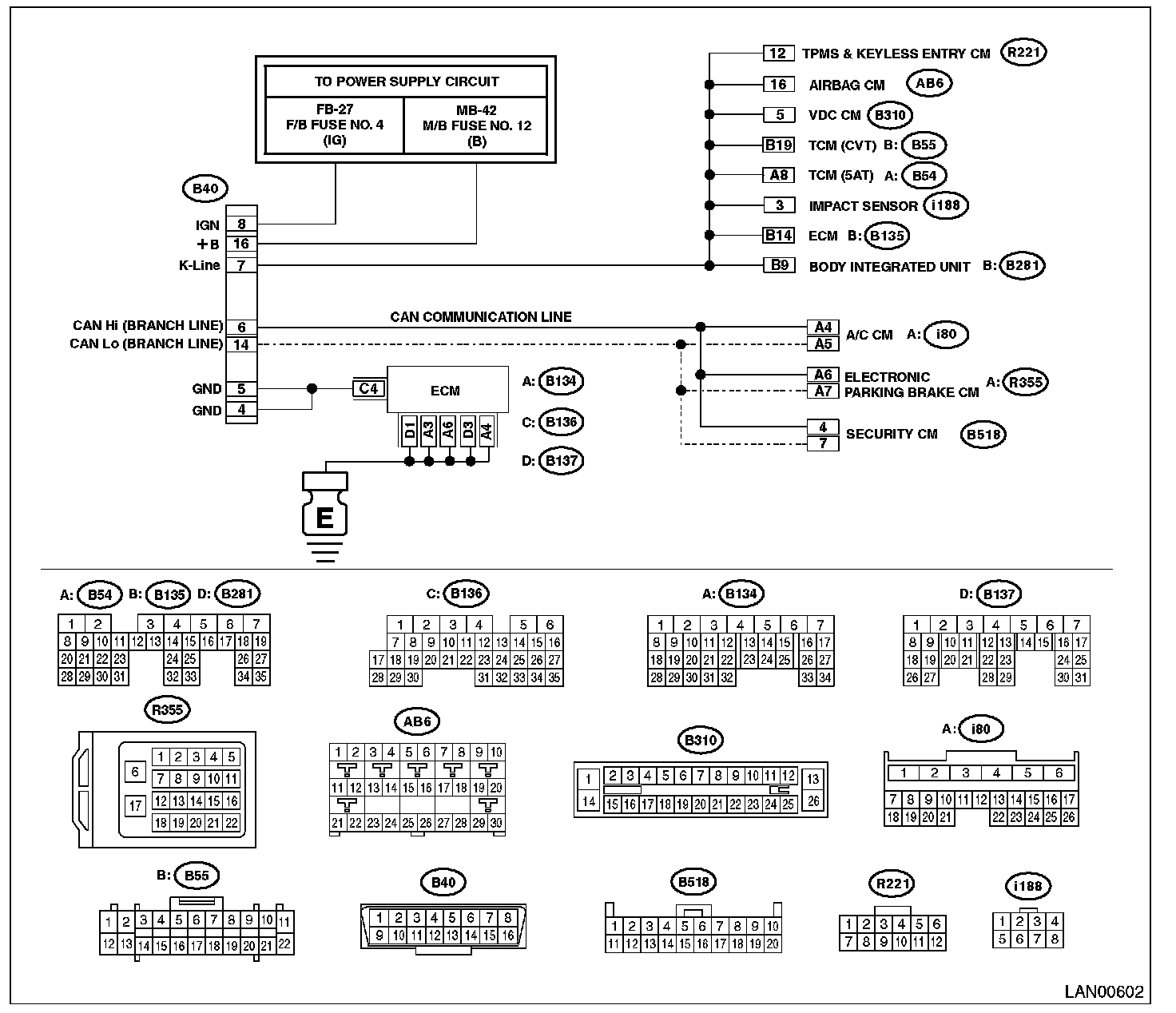

WIRING DIAGRAM:













CAUTION: When replacing body integrated unit on the model with immobilizer system, refer to the "PC application help for Subaru Select Monitor"
