Manifold Pressure/Vacuum Sensor: Service and Repair

Manifold Absolute Pressure Sensor

REMOVAL

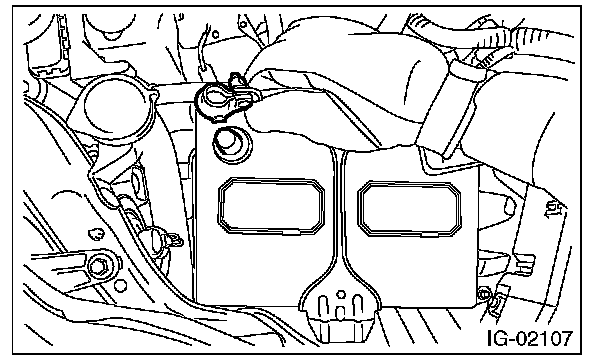

1. Disconnect the ground cable from battery.






2. Remove the air intake boot assembly.

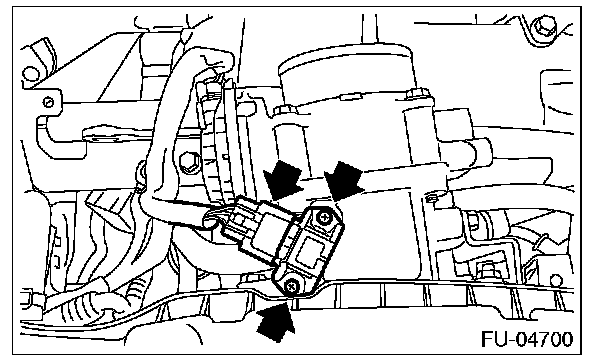

3. Disconnect the connector from the manifold absolute pressure sensor and remove the manifold absolute pressure sensor from throttle body.






INSTALLATION

Install in the reverse order of removal.

NOTE: Use new O-rings.

Tightening torque: 2 N.m (0.2 kgf.m, 1.5 ft.lb)
