Oil Temperature Sensor For ECM: Testing and Inspection

Oil Temperature Sensor

INSPECTION

1. Check that the oil temperature sensor has no deformation, cracks or other damages.

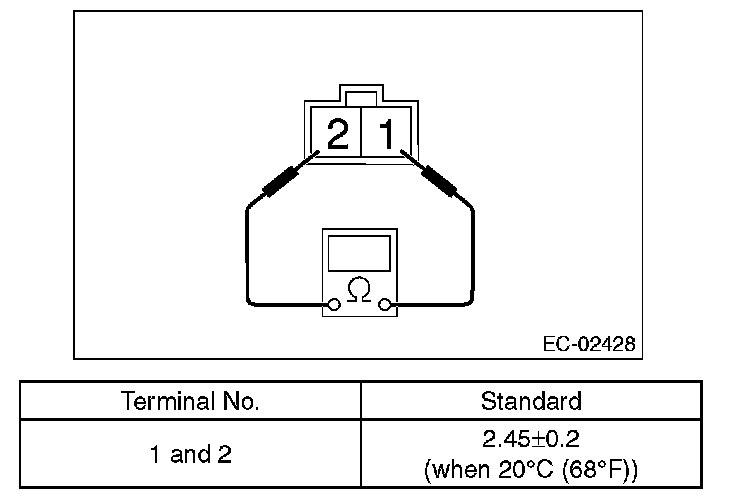

2. Check the resistance between the oil temperature sensor terminals.
