Subaru Select Monitor
Subaru Select MonitorOPERATION
1. HOW TO USE SUBARU SELECT MONITOR
NOTE: For detailed operation procedures, refer to "PC application help for Subaru Select Monitor".

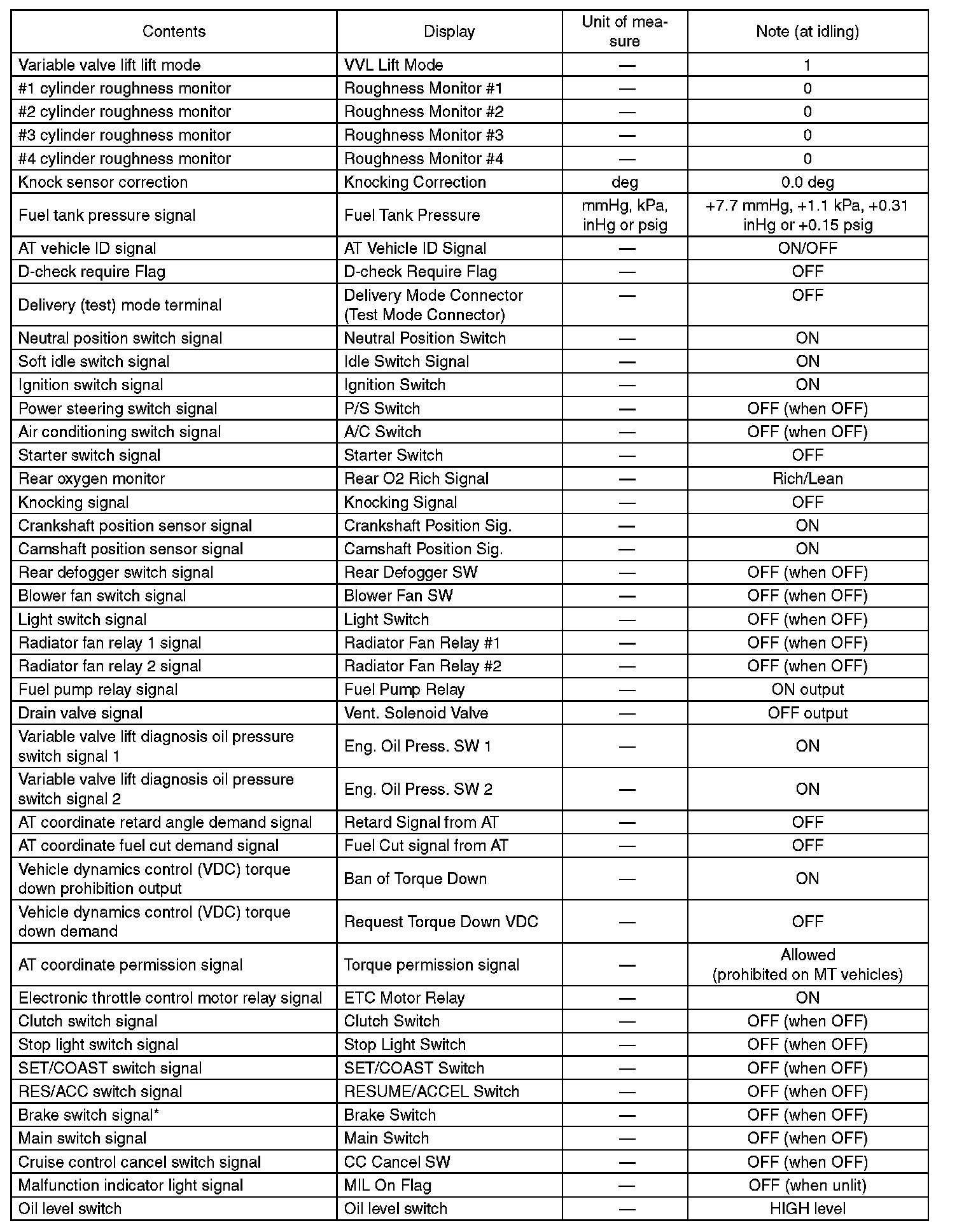

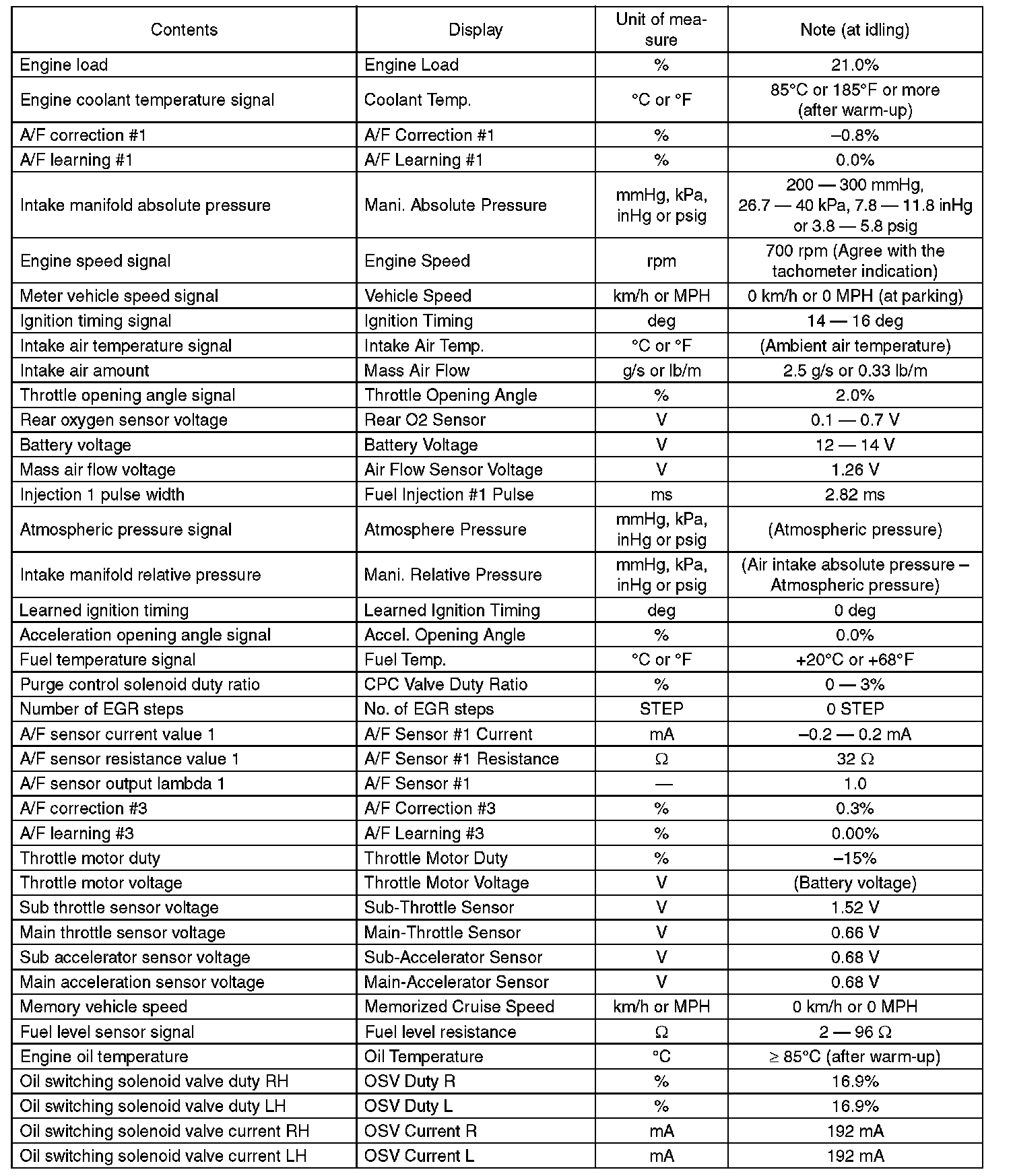

2. READ CURRENT DATA FOR ENGINE (NORMAL MODE)
NOTE:
- For detailed operation procedures, refer to "PC application help for Subaru Select Monitor".
- A list of the support data is shown in the following table.
- *: For models without cruise control, the brake switch signal does not change.

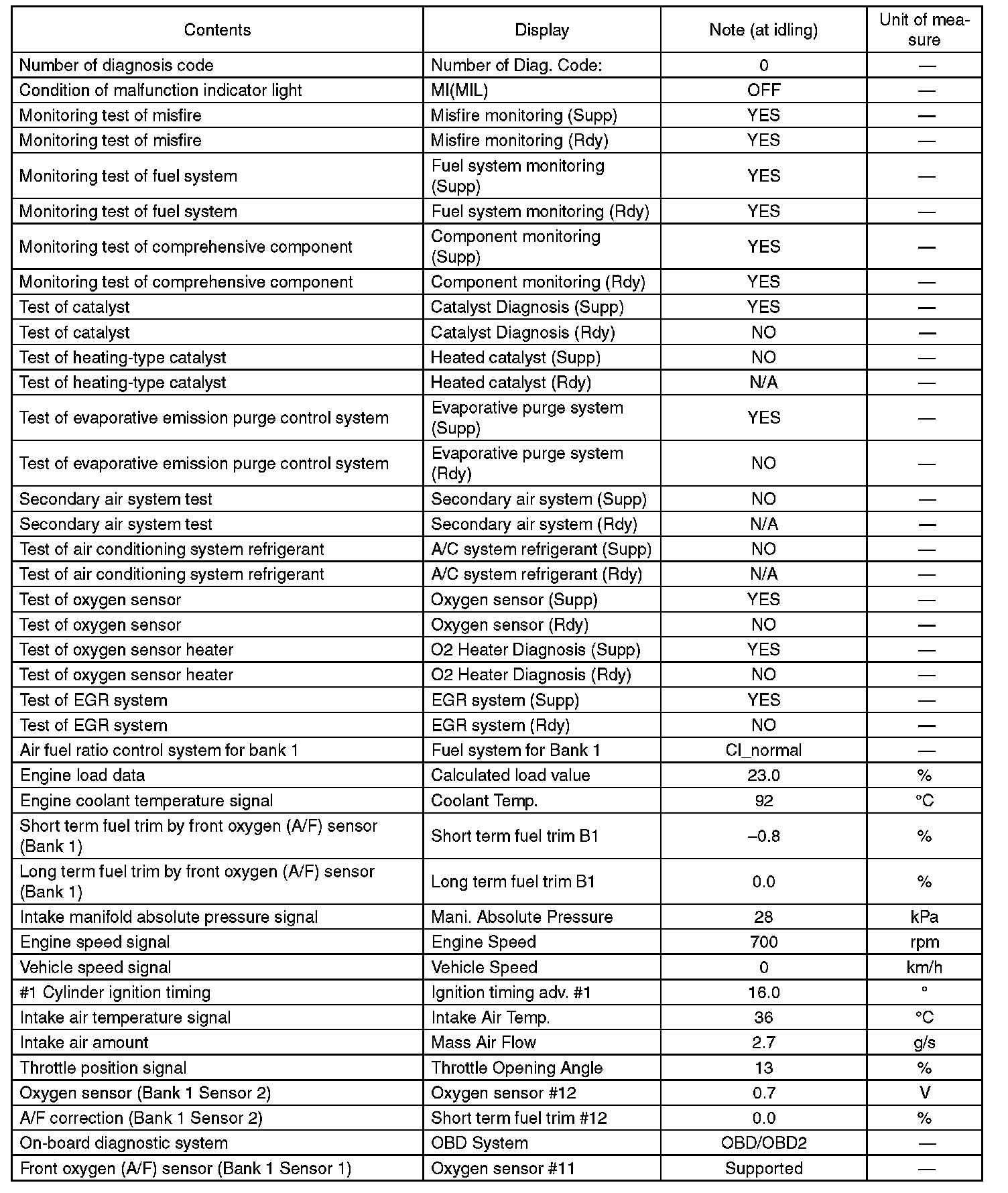

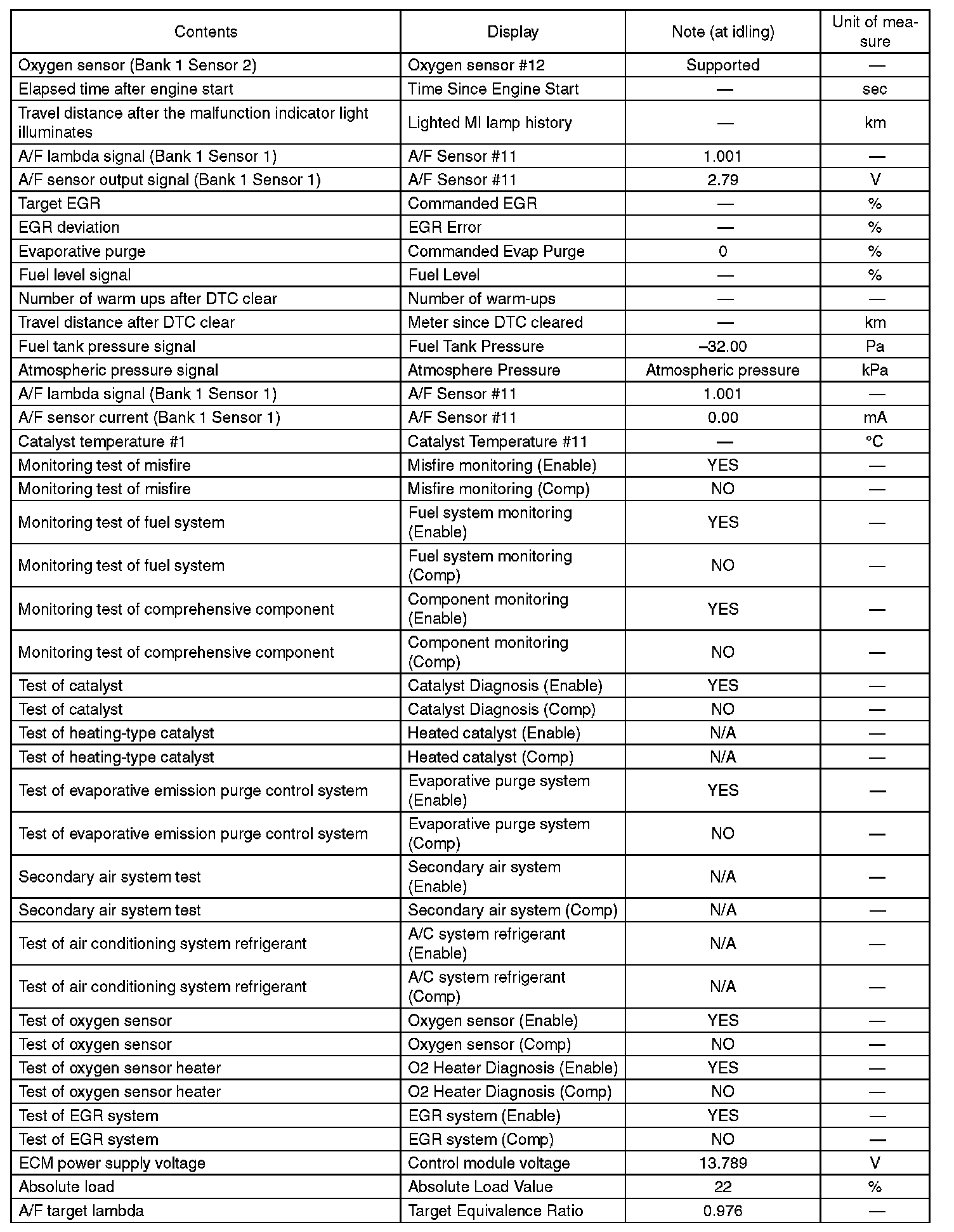

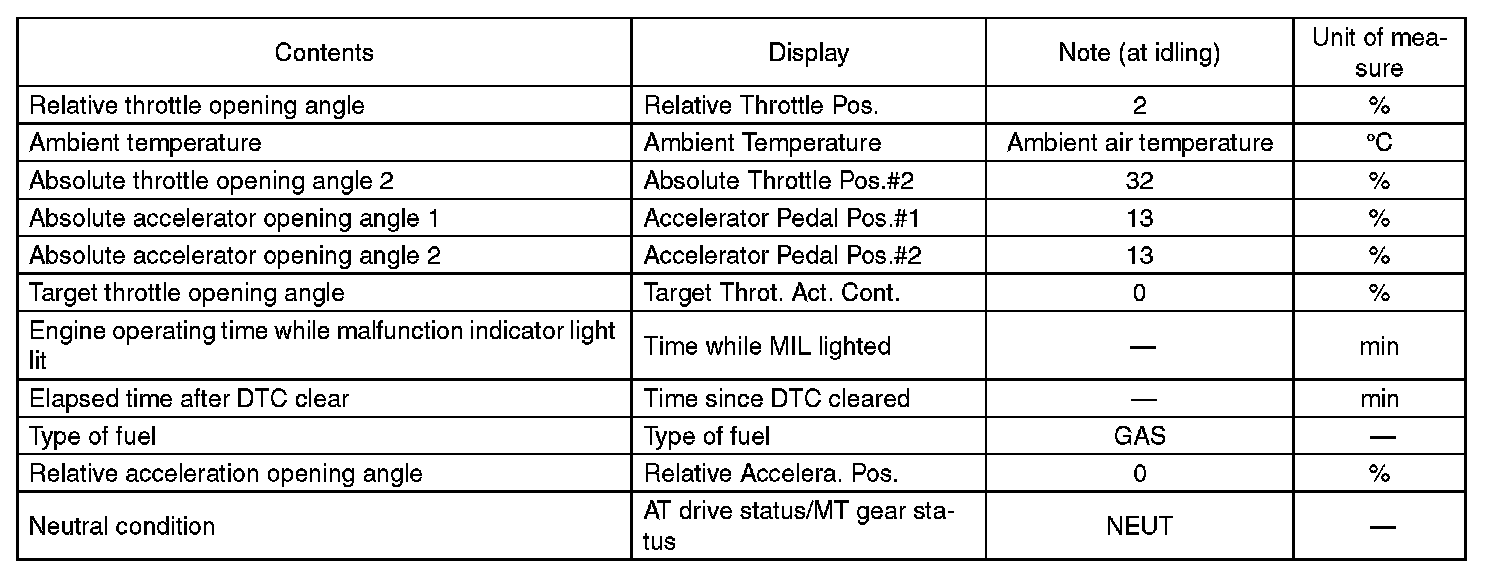

3. READ CURRENT DATA FOR ENGINE (OBD MODE)
NOTE:
- For detailed operation procedures, refer to "PC application help for Subaru Select Monitor".
- A list of the support data is shown in the following table.

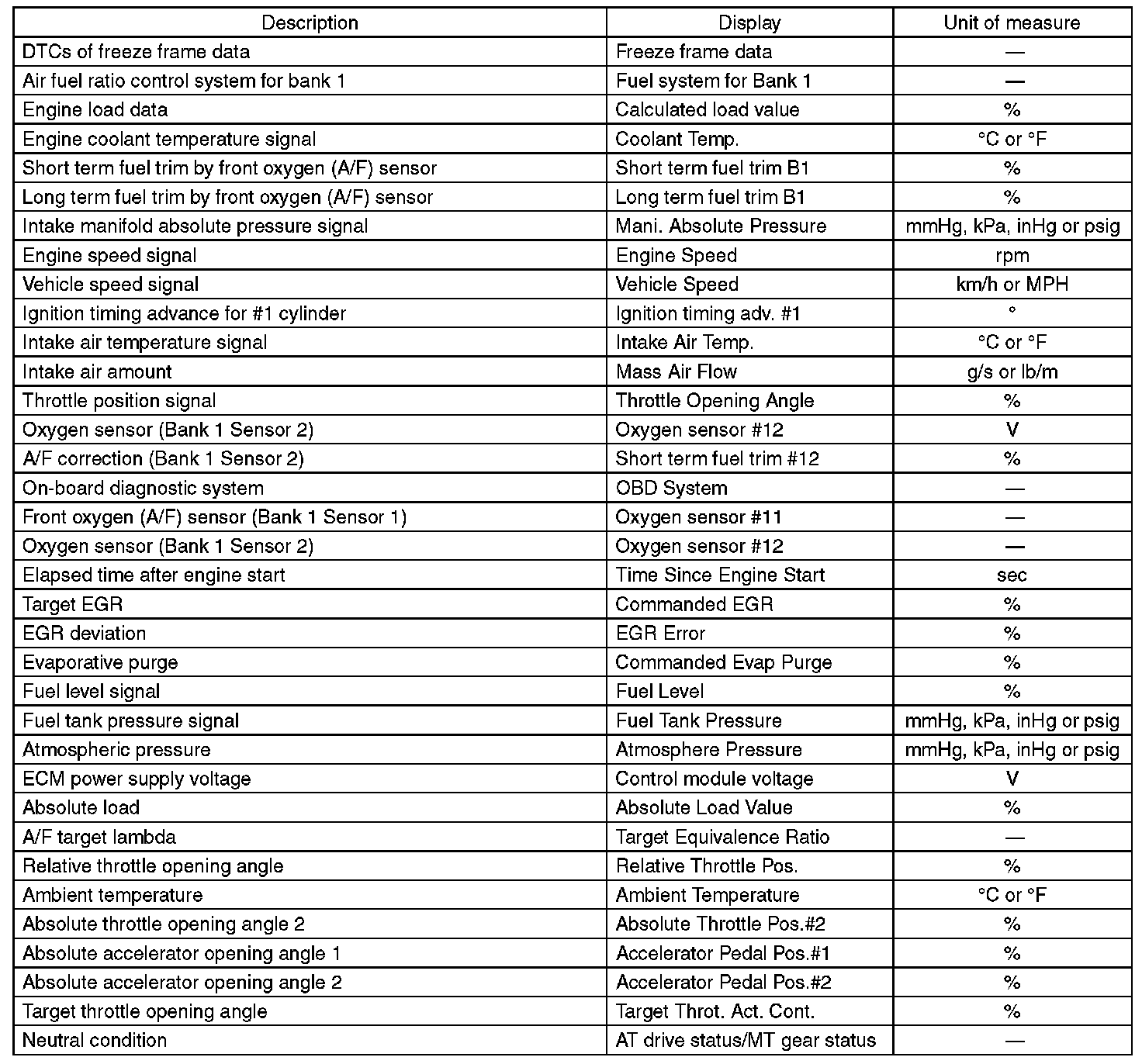

4. READ FREEZE FRAME DATA FOR ENGINE (OBD MODE)
NOTE:
- For detailed operation procedures, refer to "PC application help for Subaru Select Monitor".
- A list of the support data is shown in the following table.
5. V.I.N. REGISTRATION
1. On {{Main Menu}} display, select {Each System Check}.
2. On {{System Selection Menu}} display, select {Engine Control System}.
3. Click the [OK] button after the information of engine type has been displayed.
4. On {{Engine Diagnosis}} display, select {Entry VIN}.
5. Perform the procedures shown on the display screen.
