Ignition Lock: Testing and Inspection

Ignition Key Lock

INSPECTION

1. Disconnect the ignition switch connector.

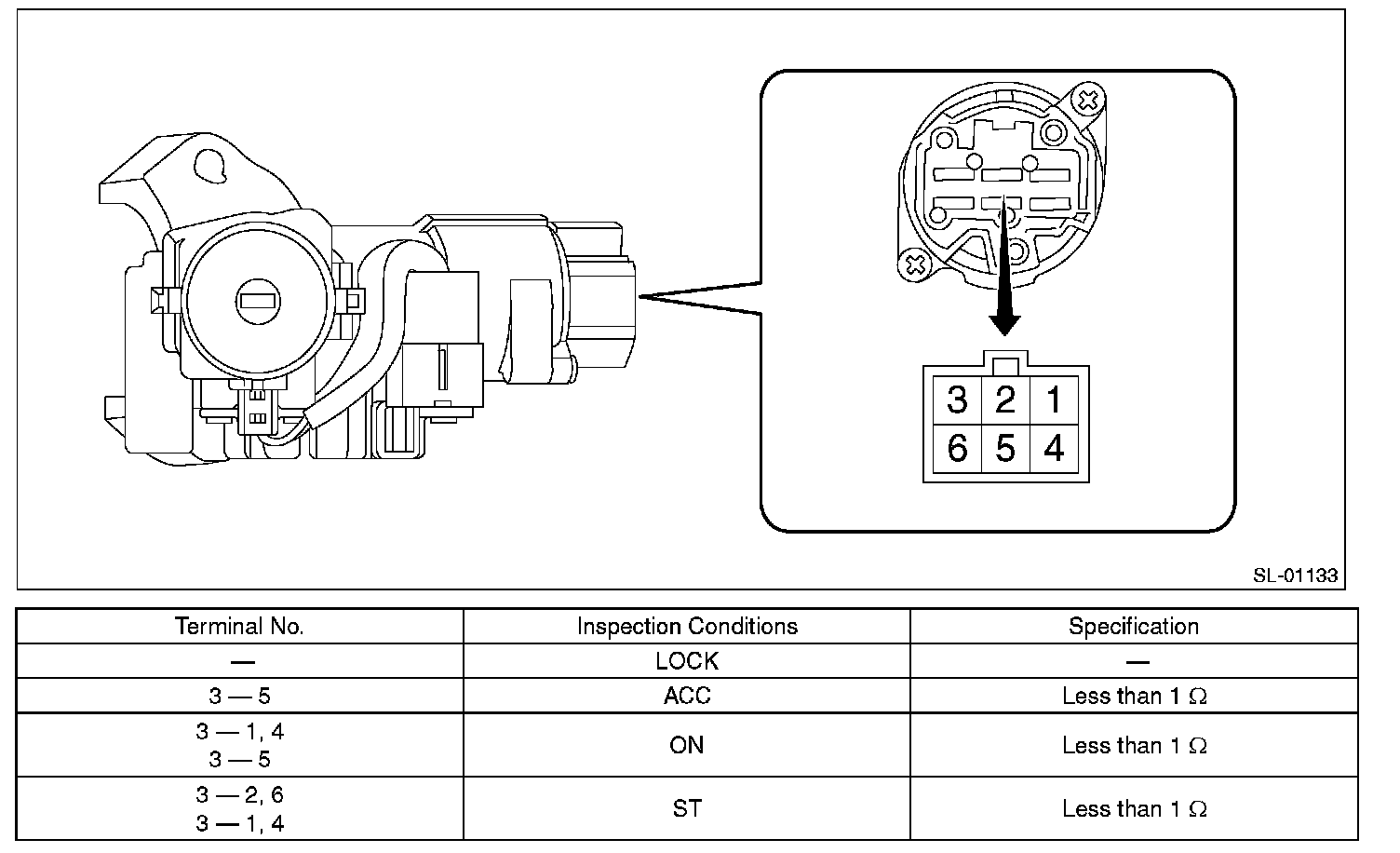

2. Measure the resistance between ignition switch terminals.

Preparation tool: Circuit tester

3. Replace the ignition switch if the inspection result is not within the standard value.
