Intake Manifold

Install in the reverse order of removal while being careful of the following.

Connect the quick connector as shown in the figure.

CAUTION:

Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
When connecting the quick connector, make sure to insert the pipe all the way in before locking the slider.
When it is difficult to lock the slider, check that the pipe is fully inserted.
Make sure that the quick connector is securely connected.

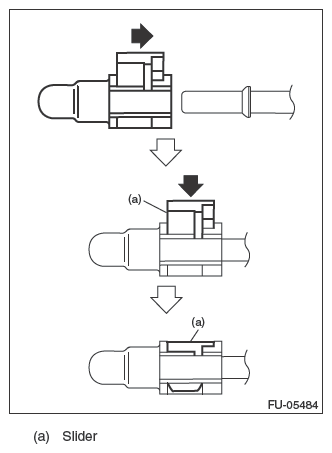

Fig 1: Connecting Quick Connector

G07909645

Courtesy of SUBARU OF AMERICA, INC.

NOTE:

Use a new gasket.
If fuel hoses or clamps are damaged, replace them with new parts.

Tightening torque:

T1: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

T2: 19 N.m (1.9 kgf-m, 14.0 ft-lb)

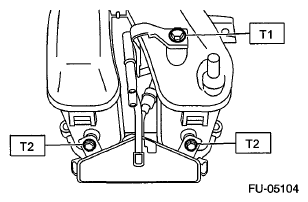

Fig 2: Fuel Gallery RH And Fuel Injector Bolts With Torque Specification

G06648271

Courtesy of SUBARU OF AMERICA, INC.

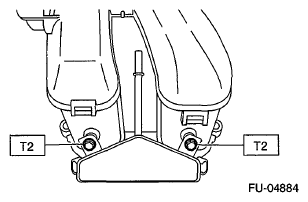

Fig 3: Fuel Gallery LH, Fuel Pipe And Fuel Injector Bolts With Torque Specification

G06648272

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

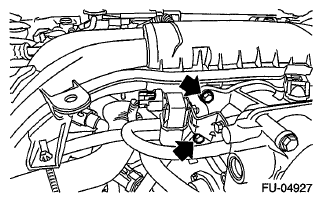

Fig 4: Locating RH Multifunction Duct Assembly Bolts With Torque Specification

G06648273

Courtesy of SUBARU OF AMERICA, INC.

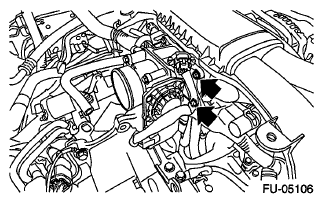

Fig 5: Locating LH Multifunction Duct Assembly Bolts With Torque Specification

G06648274

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

Fig 6: Locating Intake Manifold Protector RH Bolts

G06648249

Courtesy of SUBARU OF AMERICA, INC.

Fig 7: Locating Intake Manifold Protector LH Bolts

G06648254

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

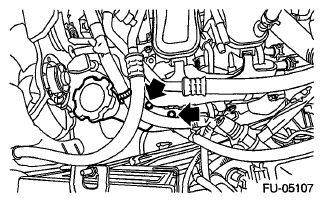

Fig 8: Locating Intake Manifold Protector Bolts

G06648277

Courtesy of SUBARU OF AMERICA, INC.
