Oil Level Switch: Removal

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Remove the under cover. Refer to FRONT UNDER COVER .
Drain the engine oil. Refer to , REPLACEMENT , Engine Oil.
Disconnect the connector of the oil level switch from the engine harness.

Fig 2: Locating Oil Level Switch Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the clip holding the oil level switch harness.
- Turbo model

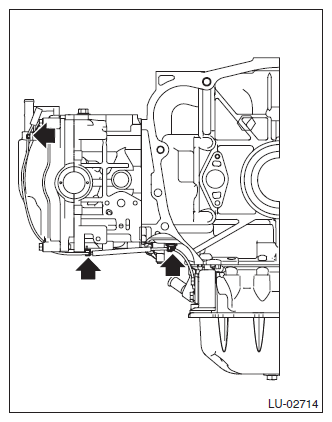

  Fig 3: Locating Oil Level Switch Harness Mounting Clip (Turbo Model)
  Courtesy of SUBARU OF AMERICA, INC.
- Non-turbo model

  Fig 4: Locating Oil Level Switch Harness Mounting Clip (Non-Turbo Model)
  Courtesy of SUBARU OF AMERICA, INC.
Remove the oil level switch from the cylinder block lower.

Fig 5: Locating Oil Level Switch Mounting Bolt (View 1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
