Cruise Control Switch: Testing and Inspection

CRUISE CONTROL COMMAND SWITCH

INSPECTION

1. Disconnect the cruise control command switch connector.

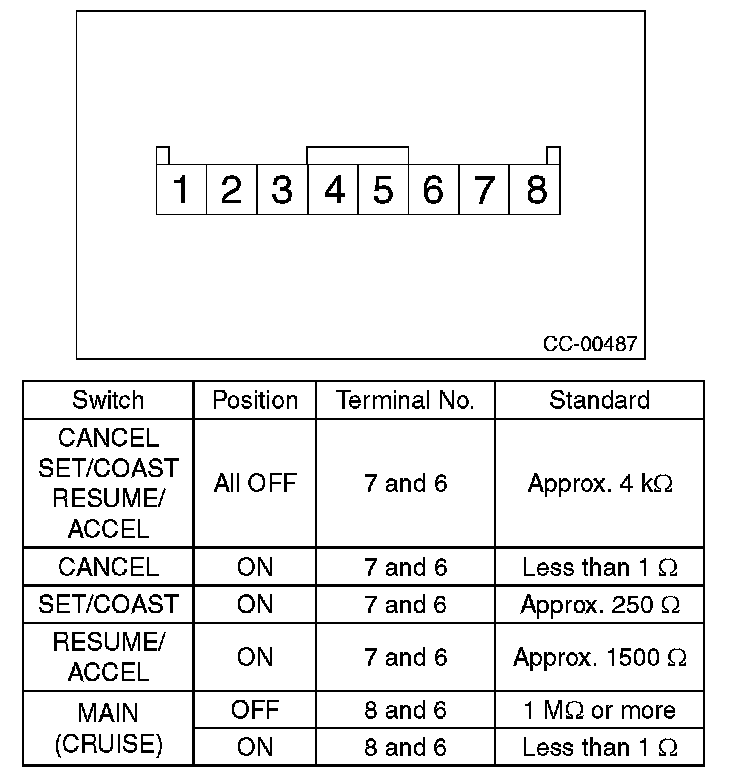

2. Check the resistance between cruise control command switch terminals.






3. Replace the cruise control command switch if the inspection result is not within the standard value.
