Engine (Diagnostics)

ELECTRICAL COMPONENT LOCATION

LOCATION

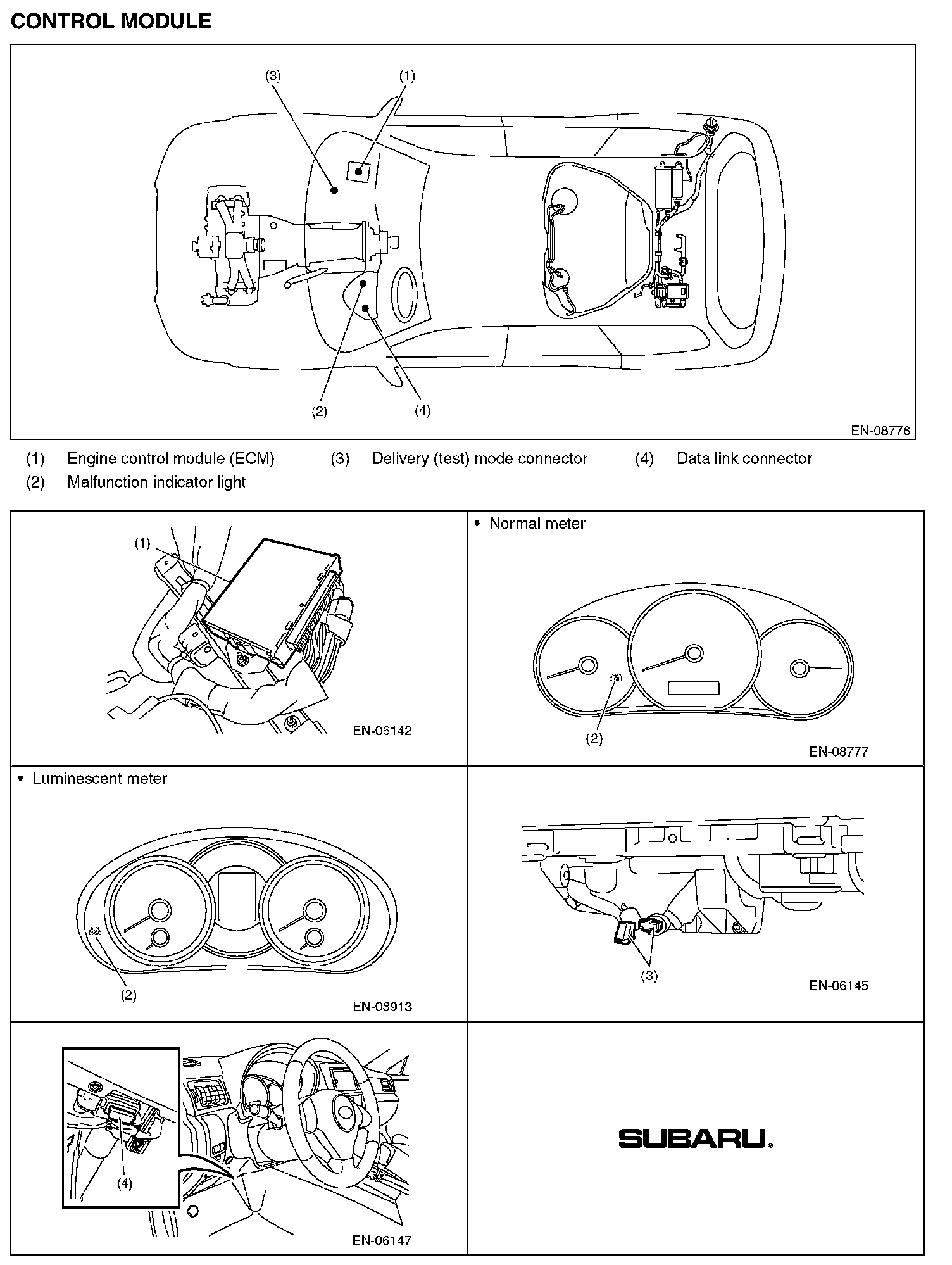

1. CONTROL MODULE

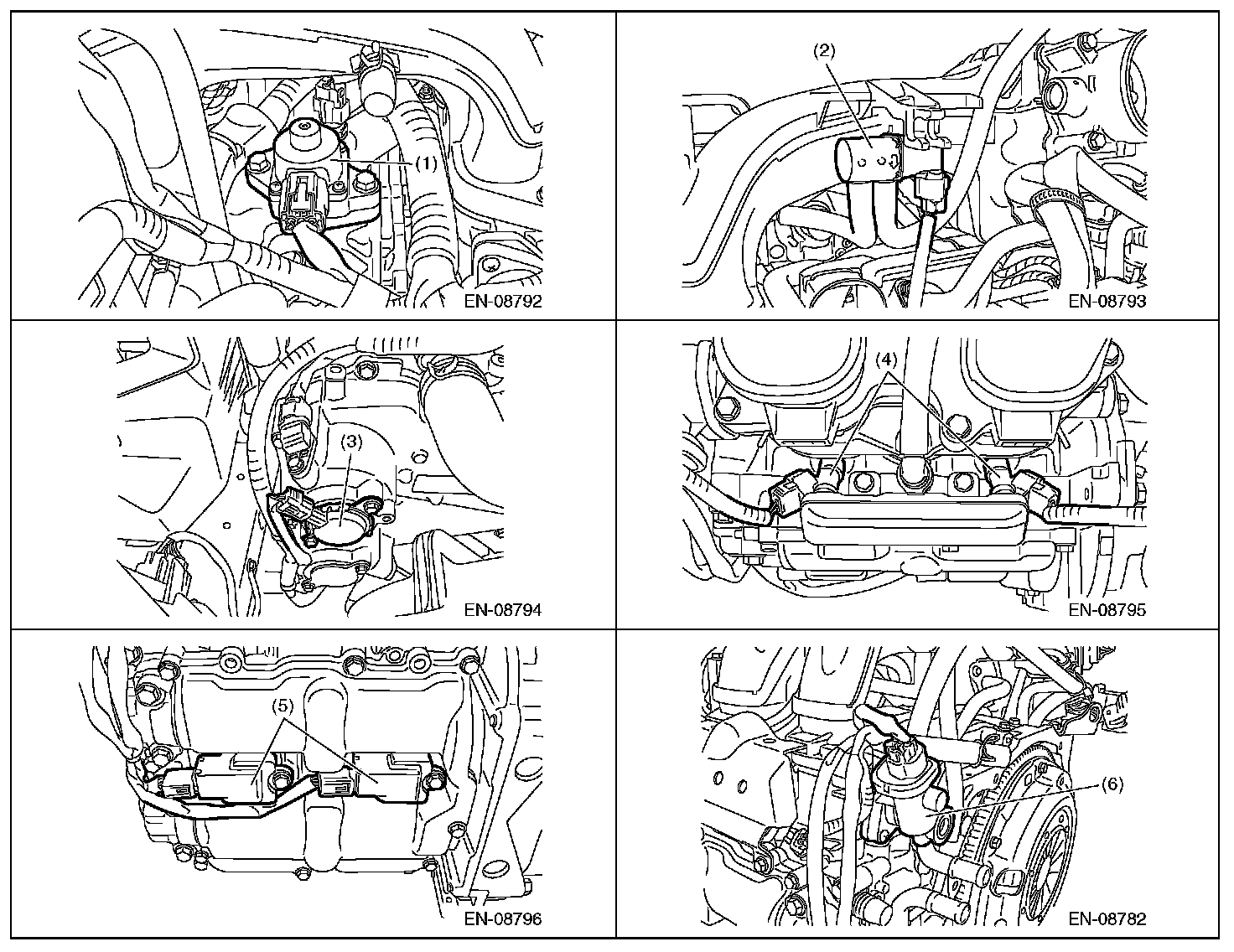

2. SENSOR

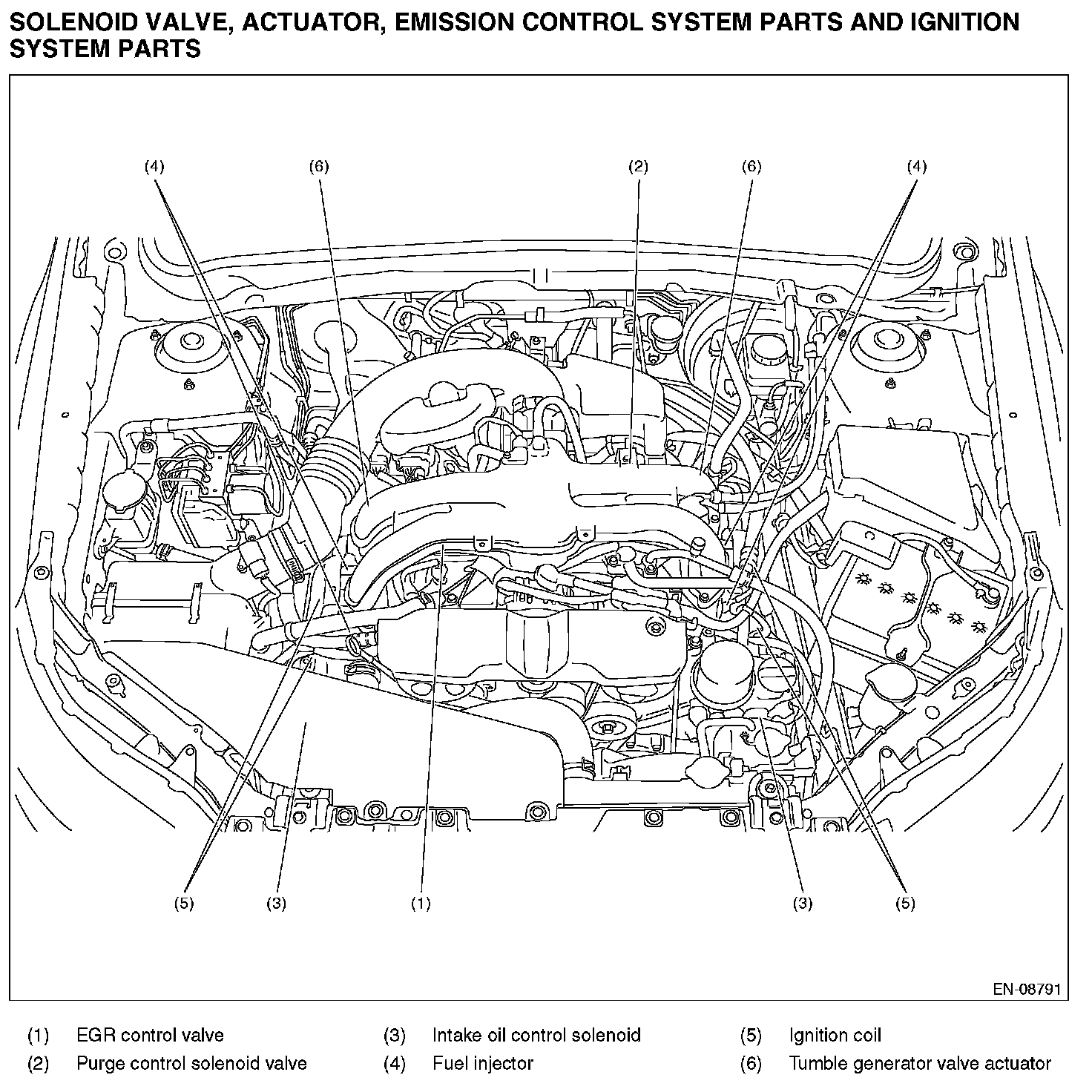

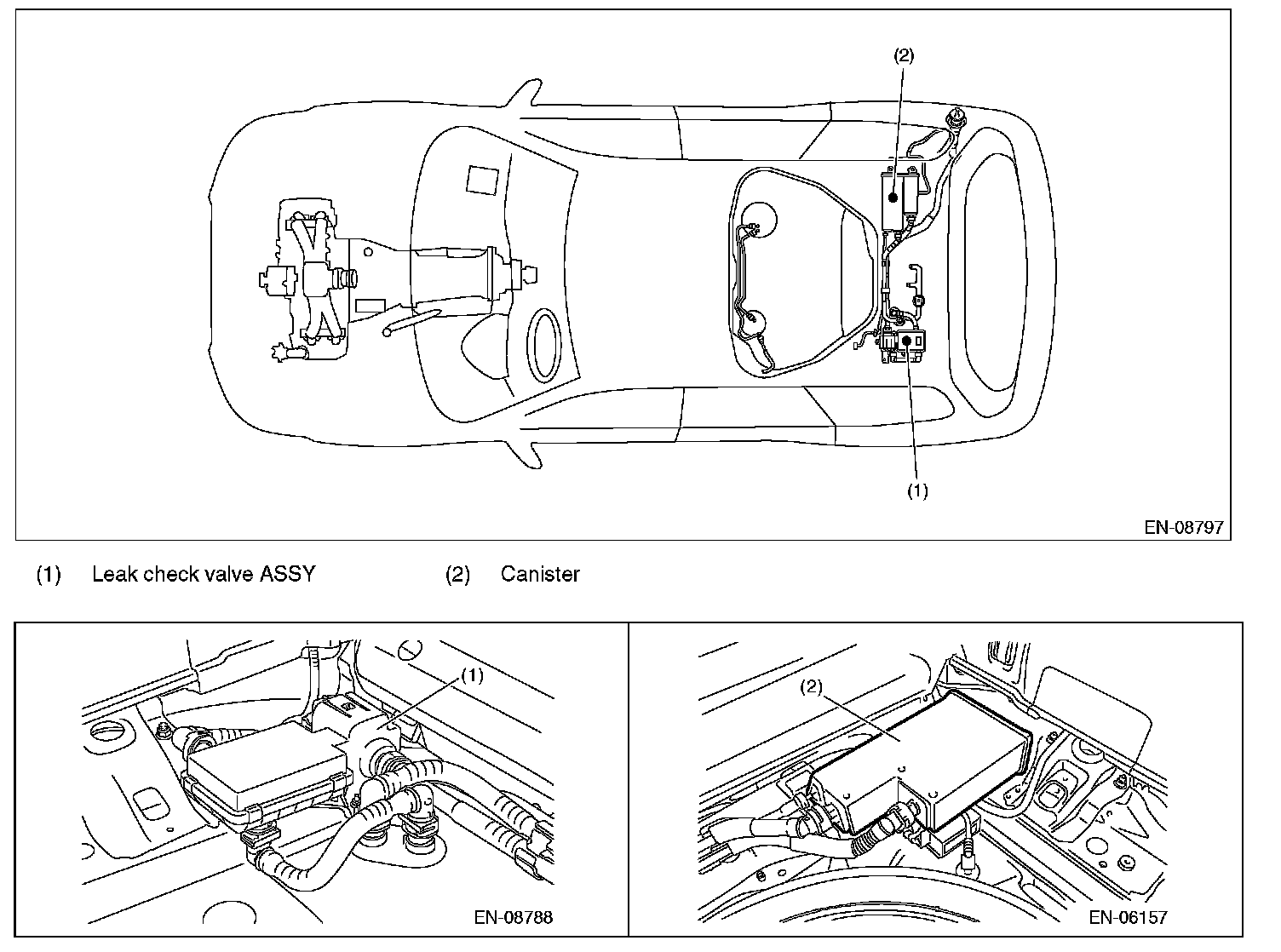

3. SOLENOID VALVE, ACTUATOR, EMISSION CONTROL SYSTEM PARTS AND IGNITION SYSTEM PARTS
