360° Interval Difference Method
DIAGNOSTIC METHOD CHART
Diagnostic value domg 360 = (omg 1 - omg 0) - (omg 3 - omg 2)
Misfire judgment domg 360 > Judgment value → Judge as misfire

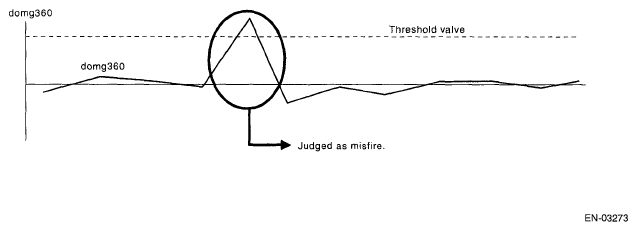

Fig 1: Crankshaft Position Speed Graph (360 Deg Interval Difference Method)
Courtesy of SUBARU OF AMERICA, INC.
