Fuel Level Sensor: Inspection

Measure the fuel level sensor float position.

NOTE: When inspecting the fuel level sensor, perform the work with the sensor installed to the fuel pump.

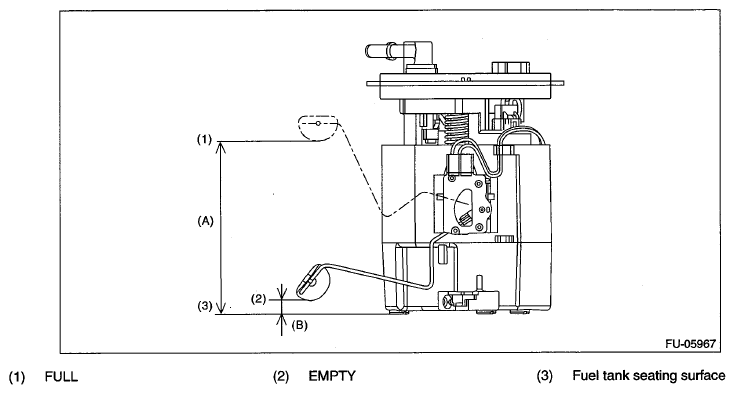

Fig 1: Distance Between Fuel Tank Seating Surface To Full And Empty Level Of Fuel

Courtesy of SUBARU OF AMERICA, INC.

FLOATING POSITION REFERENCE CHART

Float position	Standard
FULL to Fuel tank seating surface (A)	126.4±4 mm (4.976±0.157 in)
EMPTY to Fuel tank seating surface (B)	11.0±4 mm (0.433±0.157 in)

Measure the resistance between fuel level sensor terminals.

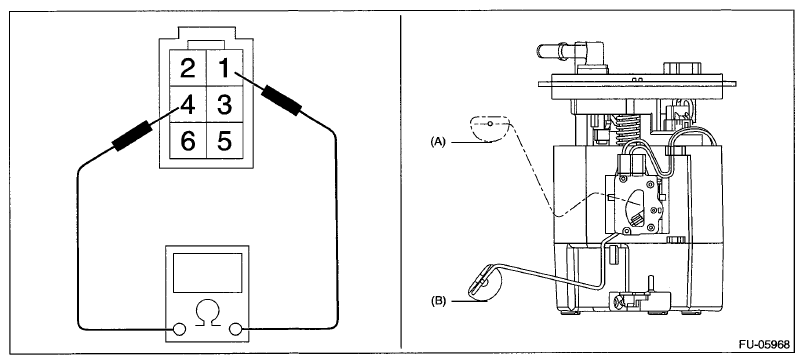

Fig 2: Measuring Resistance Between Fuel Level Sensor Terminals

Courtesy of SUBARU OF AMERICA, INC.

TERMINAL RESISTANCE REFERENCE CHART

Float position	Terminal No.	Standard
FULL (A)	1 and 4	2.0^+0.5_-1.0 Ω
EMPTY (B)	1 and 4	31.9 ± 1.0 Ω
