DTC P0134 O2 Sensor Circuit No Activity Detected (Bank 1 Sensor 1): Wiring Diagram

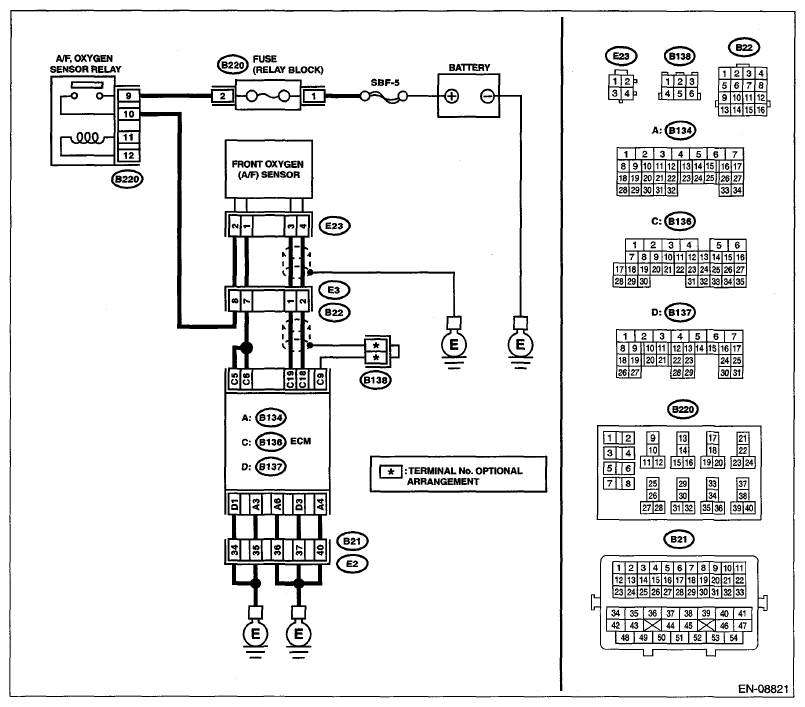

Fig 1: O2 Sensor Circuit No Activity Detected - Wiring Diagram (Bank 1 Sensor 1)

Courtesy of SUBARU OF AMERICA, INC.

DIAGNOSIS PROCEDURE

Step	Check	Yes	No
1 CHECK HARNESS BETWEEN ECM AND FRONT OXYGEN (A/F) SENSOR CONNECTOR.  Turn the ignition switch to OFF. Disconnect the connectors from ECM and front oxygen (A/F) sensor connector. Measure the resistance of harness between ECM and front oxygen (A/F) sensor connector. Connector & terminal  (B136) No. 19 - (E23) No. 3:  (B136) No. 18 - (E23) No. 4:	Is the resistance less than 1 Ω?	Go to step 2.	Repair the harness and connector. NOTE: In this case, repair the following item: Open circuit in harness between ECM and front oxygen (A/F) sensor connector Poor contact of coupling connector
2 CHECK FOR POOR CONTACT.  Check for poor contact of ECM and front oxygen (A/F) sensor connector.	Is there poor contact of ECM or front oxygen (A/F) sensor connector?	Repair the poor contact of ECM or front oxygen (A/F) sensor connector.	Replace the front oxygen (A/F) sensor. < refer to FRONT OXYGEN (A/F) SENSOR . >
