Ignition Key Lock: Inspection

  1. Disconnect the ignition switch connector.
  2. Measure the resistance between ignition switch terminals.

    Preparation tool: Circuit tester

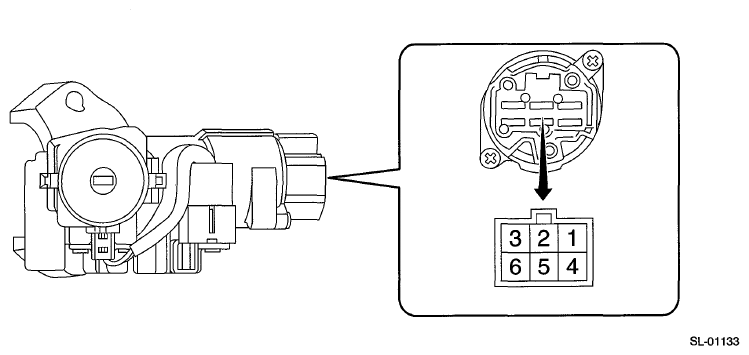

    Fig 1: Identifying Ignition Switch Connector Terminals
    G06653928Courtesy of SUBARU OF AMERICA, INC.
    Terminal No. Inspection Conditions Specification
    - LOCK -
    3 - 5 ACC Less than 1 Ω
    3 - 1, 4
    3 - 5    		 ON Less than 1 Ω
    3 - 2, 6
    3 - 1, 4    		 ST Less than 1 Ω
  3. Replace the ignition switch if the inspection result is not within the standard value.
