Keyless Transmitter Battery

CAUTION: To prevent static electricity damage to the keyless transmitter printed circuit board, touch the steel area of building with hand to discharge static electricity carried on body or clothes before disassembling the keyless transmitter.

Disassemble the keyless transmitter, and take out the transmitter case (1).

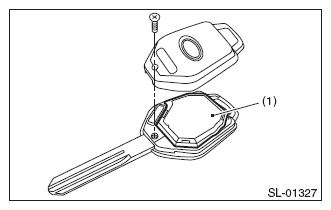

Fig 1: Identifying Transmitter Case With Screw
Courtesy of SUBARU OF AMERICA, INC.
Release the claws, and open the transmitter case.

Fig 2: Locating Transmitter Case Claws
Courtesy of SUBARU OF AMERICA, INC.
Remove the battery (1) from the transmitter.

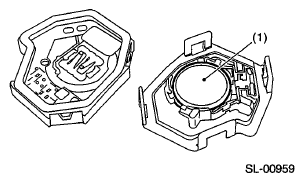

Fig 3: Identifying Transmitter Battery
Courtesy of SUBARU OF AMERICA, INC.
