Rear Gate Opener Button: Removal

NOTE: The rear gate opener button is integrated into the license plate light assembly harness.

Remove the rear gate trim. Refer to REAR GATE TRIM .
Remove the rear gate garnish. Refer to REAR GATE GARNISH .
Remove the rear gate opener button.
1. Release the locks at both ends of the rear gate opener button by pushing with a flat tip screwdriver.

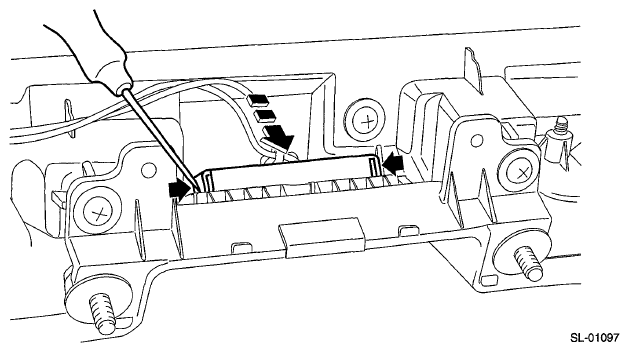

  Fig 1: Releasing Rear Gate Opener Button
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the screws and remove the license plate light.

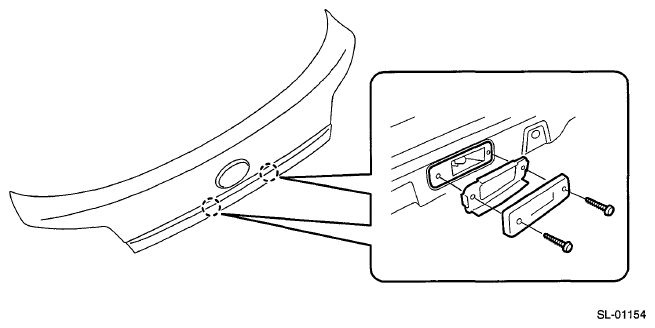

  Fig 2: Identifying License Plate Light And Screws
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove the license plate light assembly harness from the rear gate garnish.

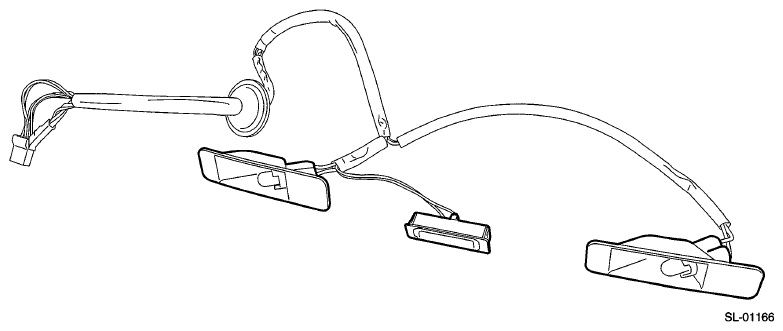

  Fig 3: Identifying License Plate Light Assembly And Rear Gate Garnish
  Courtesy of SUBARU OF AMERICA, INC.
