Oil Cooler: Installation

Tighten the oil cooler connector to install the oil cooler to the oil pan upper.
Tightening torque:

54 N.m (5.5 kgf-m, 39.8 ft-lb)

NOTE: Use new O-rings.

Fig 1: Identifying Oil Cooler Connector, Oil Cooler, O-Ring And Upper Oil Pan
Courtesy of SUBARU OF AMERICA, INC.
Attach the engine oil filter. Refer to , INSTALLATION , Engine Oil Filter.
Attach the bolts which hold the engine oil cooler water pipe to chain cover and connect the water hose to oil cooler.
Tightening torque:

T: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

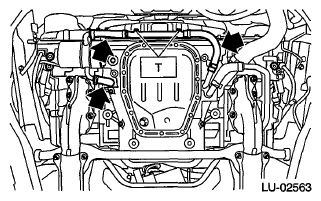

Fig 2: Locating Engine Oil Cooler Water Pipe
Courtesy of SUBARU OF AMERICA, INC.
Install the under cover. Refer to FRONT UNDER COVER .
Lower the vehicle.
Fill the ATF. Refer to ENGINE COOLANT .
Refill the engine oil. Refer to , REPLACEMENT , Engine Oil.
Check the engine oil level. Refer to , INSPECTION , Engine Oil.
