Variable Valve Lift Mechanism

The variable valve lift mechanism consists of a low lift arm, high lift arm, torsion spring, and a small cylinder that includes 2 locking pins and a spring. The engine oil pressure is led from OSV to the oil chamber of support.

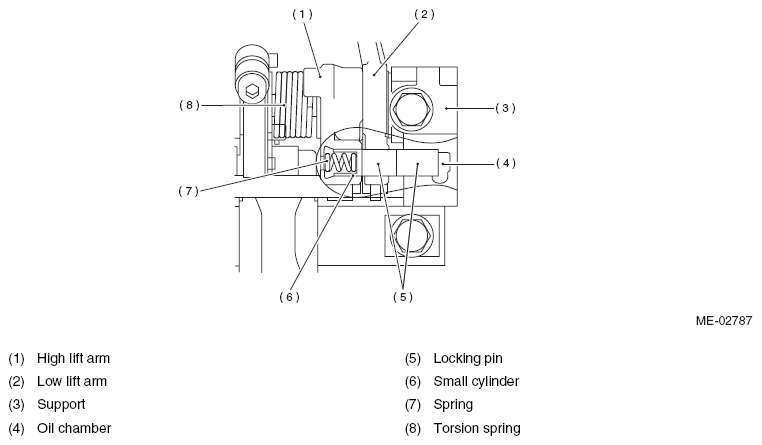

Fig 1: Identifying Variable Valve Lift Components

Courtesy of SUBARU OF AMERICA, INC.
