Front Inner Remote: Removal

  1. Remove the door trim. Refer to DOOR TRIM .
  2. Remove the screws to detach the front inner remote handle.

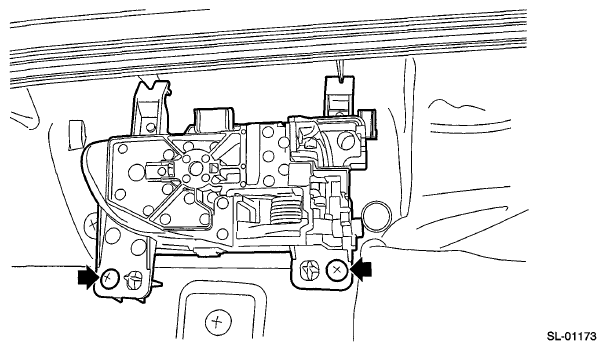

    Fig 1: Locating Front Inner Remote Screws
    G06653882Courtesy of SUBARU OF AMERICA, INC.
