Keyless Buzzer: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the front bumper face. Refer to FRONT BUMPER .
  3. Remove the keyless buzzer.
    1. Disconnect the connector.
    2. Remove the clip, and remove the keyless buzzer.

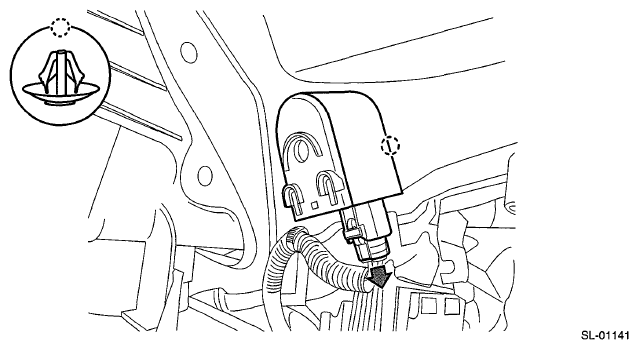

      Fig 1: Removing Keyless Buzzer And Clip
      G06653941Courtesy of SUBARU OF AMERICA, INC.
