360° Interval Difference Method

Diagnostic value domg 360 = (omg 1 - omg 0) - (omg 3 - omg 2)
Misfire judgment domg 360 > Judgment value → Judge as misfire

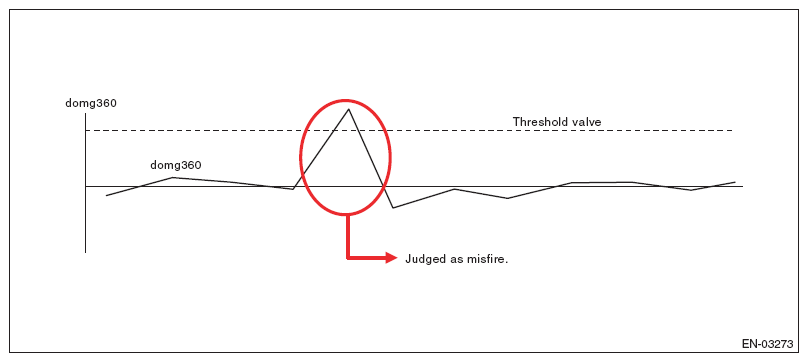

Fig 1: 360 Interval Difference Method Graphical Representation
G07911736Courtesy of SUBARU OF AMERICA, INC.
