Diagnostic Method: Normal

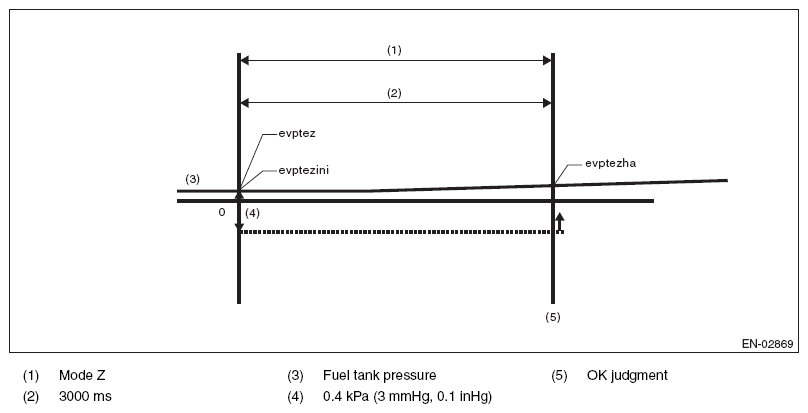

Fig 1: Fuel Tank Pressure Graph

Courtesy of SUBARU OF AMERICA, INC.

evptez - evptezha ≤ 0.4 kPa (3 mmHg, 0.1 inHg) Normal when above is established

Time Needed for Diagnosis:  5000 ms + 3000 ms
