Full Count Diagnosis: Notes

After the timer diagnosis is completed, reset the counter in soaking timer IC and start the count up operation. Judge as full count diagnosis malfunction if counter in soaking timer IC is not $3FF (1023 count) after 4 seconds.

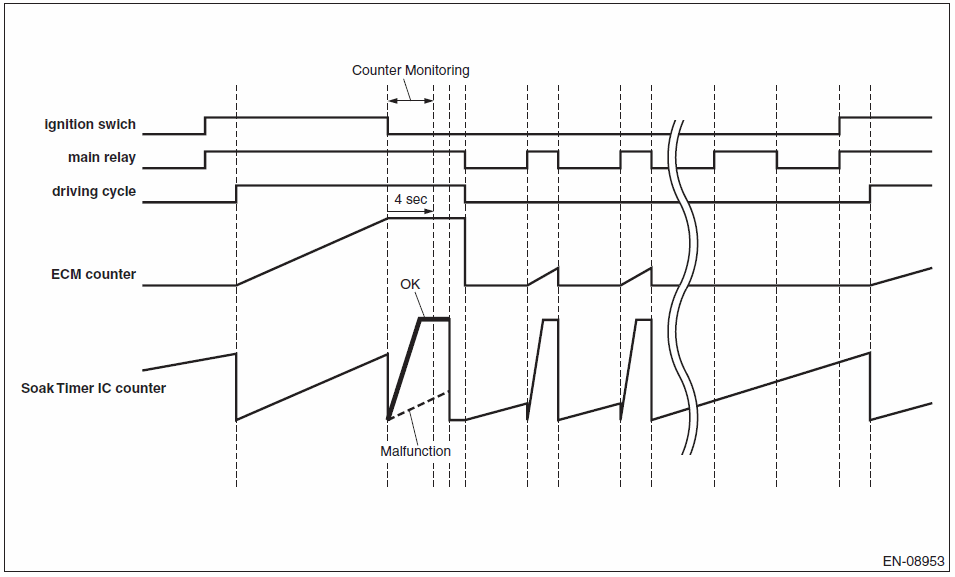

Fig 1: Full Count Diagnosis Graph

Courtesy of SUBARU OF AMERICA, INC.
