Soaking Timer IC Setting Diagnosis: Notes

When setting the activation setting time to soaking timer IC, compare the writing value to soaking timer IC with read out value. Judge as malfunction if the values do not match 3 times in a row.

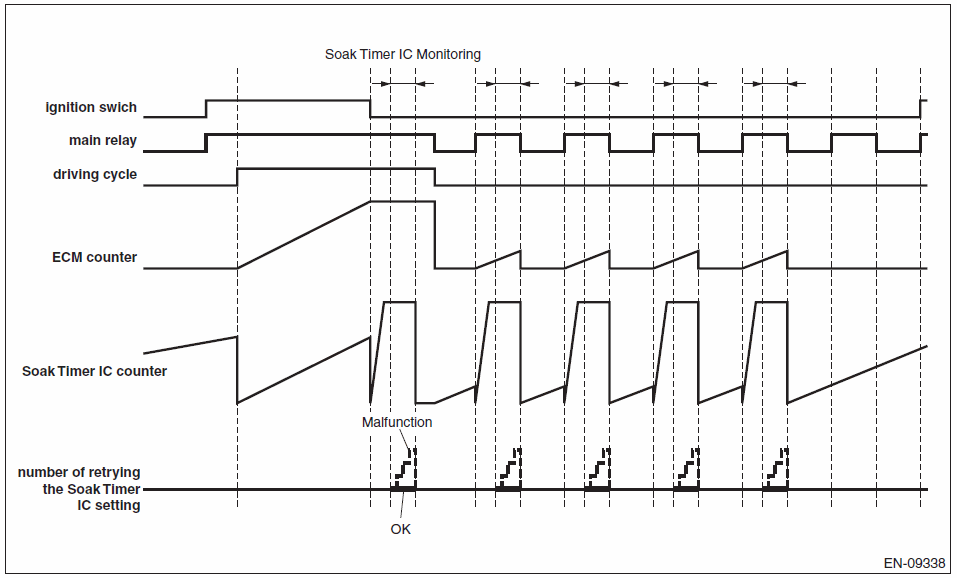

Fig 1: Soaking Timer IC Setting Diagnosis Graph

Courtesy of SUBARU OF AMERICA, INC.
