Conditions For VDC Sequence Control
WARNING:
This page is about a different car, the 2011 Subaru Tribeca. However, it is still accessible from the selected car via links, so may be relevant.

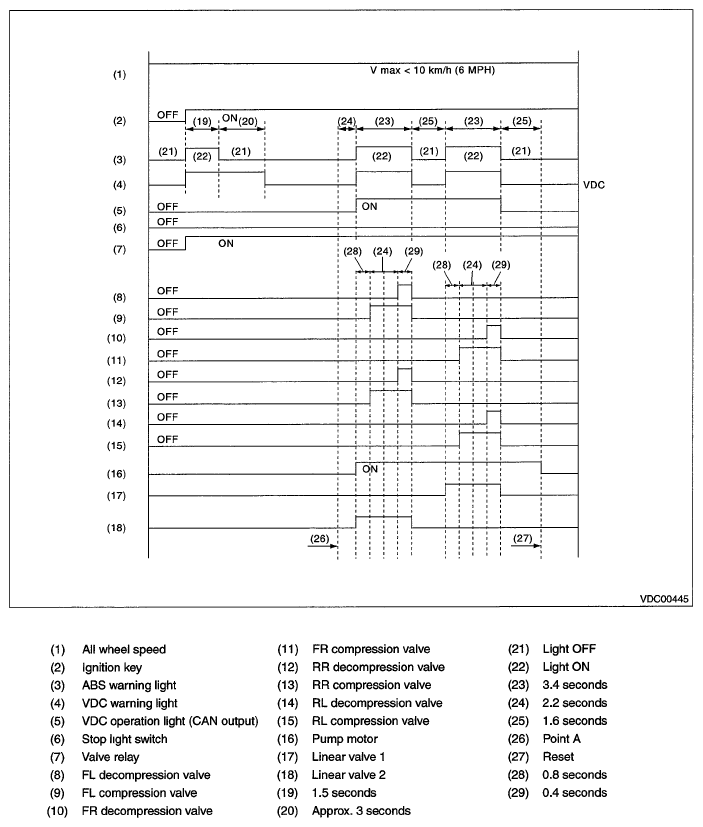

Fig 1: VDC Sequence Control Conditions
Courtesy of SUBARU OF AMERICA, INC.
NOTE:
The control operation starts from point A.
