Front Disc Brake Assembly: Installation

WARNING: This page is about a different car, the 2011 Subaru Tribeca. However, it is still accessible from the selected car via links, so may be relevant.

Apply a thin coat of Molykote M7439 (Part No. K0770YA000) or grease contained in the pad kit to the support.

Fig 1: Applying Thin Coat Of Molykote M7439 (Part No. K0770YA000) Or Grease Contained In Pad Kit To Support
Courtesy of SUBARU OF AMERICA, INC.
Install the support to the housing.
Tightening torque:

120 N.m (12.2 kgf-m, 88.5 ft-lb)
Apply a thin coat of Molykote M7439 (Part No. K0770YA000) or grease contained in the pad kit to the pad clip.

Fig 2: Applying Thin Coat Of Molykote M7439 (Part No. K0770YA000) Or Grease Contained In Pad Kit To Pad Clip
Courtesy of SUBARU OF AMERICA, INC.

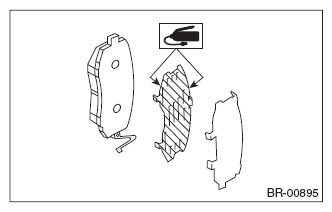

Apply a thin coat of Molykote AS880N (Part No. K0777YA010) or grease contained in the pad kit to both surfaces of the inner shim.

Fig 3: Applying Thin Coat Of Molykote AS880N (Part No. K0777YA010) Or Grease Contained In Pad Kit To Both Surfaces Of Inner Shim
Courtesy of SUBARU OF AMERICA, INC.
Install the pad to support.
NOTE: Install the pad indicator in proper direction.

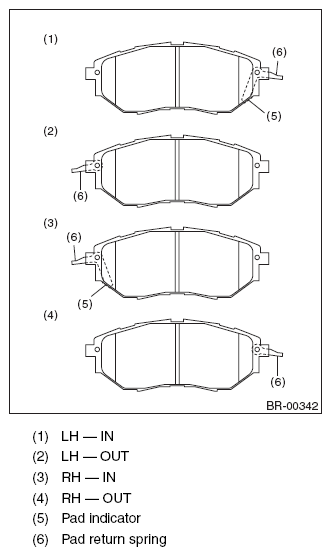

Fig 4: Identifying Pad Indicator Direction
Courtesy of SUBARU OF AMERICA, INC.
CAUTION:
- Be sure to install so that the pad return spring faces the input side of the direction of brake rotor rotation, as shown in the figure.
- Correctly install the pad return spring to the supporting surface of the pad clip as shown in the figure.
- If the pad return spring is deformed or damaged, replace the brake pad.

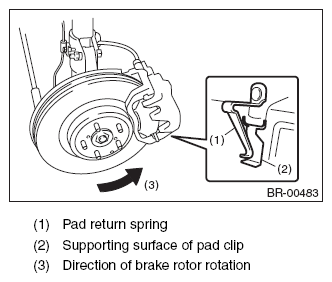

Fig 5: Identifying Pad Return Spring And Supporting Surface Of Pad Clip
Courtesy of SUBARU OF AMERICA, INC.
Install the caliper body to the support.
Tightening torque:

27 N.m (2.8 kgf-m, 19.9 ft-lb)
Connect the brake hose using a new brake hose gasket.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
Bleed air from the brake system.
