Operation Table

WARNING: This page is about a different variant/trim than selected.

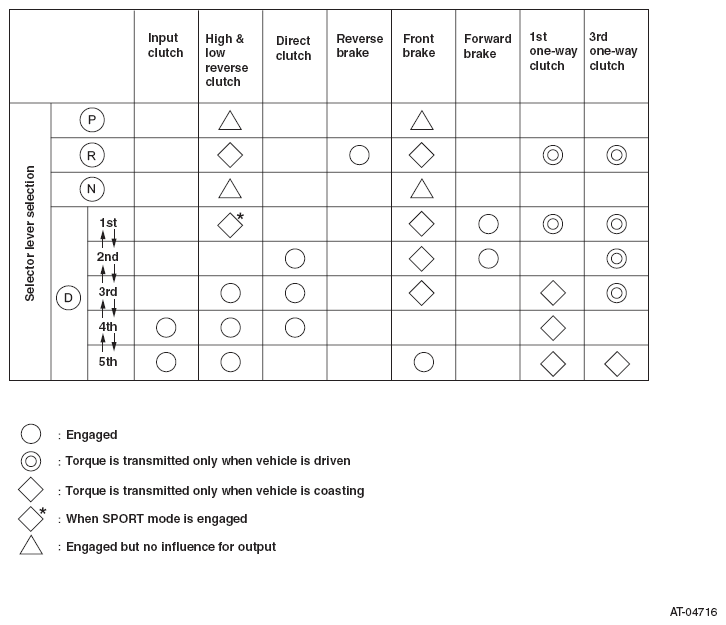

Fig 1: Gear Train Operation Chart
G08260278Courtesy of SUBARU OF AMERICA, INC.
