P Range

WARNING: This page is about a different variant/trim than selected.

As with N range, since both forward brake and reverse brake are in the release status, driving force of input shaft is not transmitted to output shaft.
The parking pawl that operates in conjunction with the select lever engages with the parking gear and mechanically fixes the output shaft.

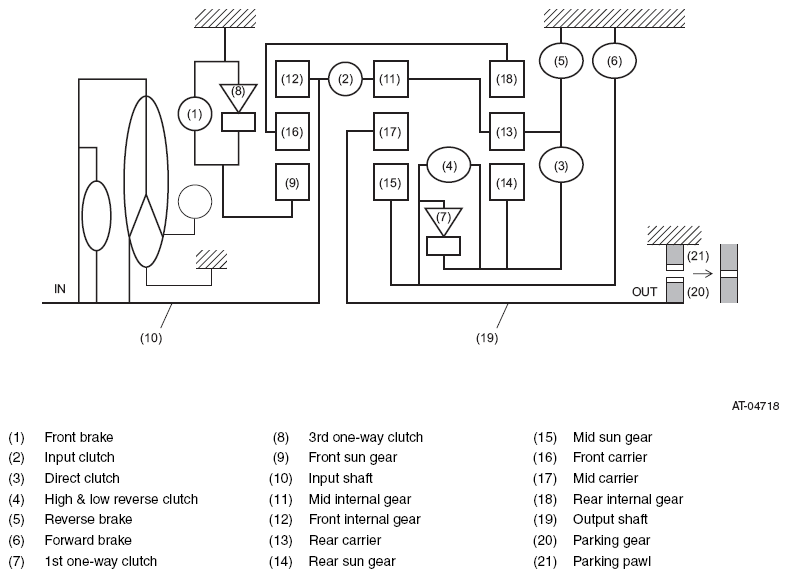

Fig 1: Power Flow Diagram (P Range)

Courtesy of SUBARU OF AMERICA, INC.
