AT Control System

AT CONTROL SYSTEM

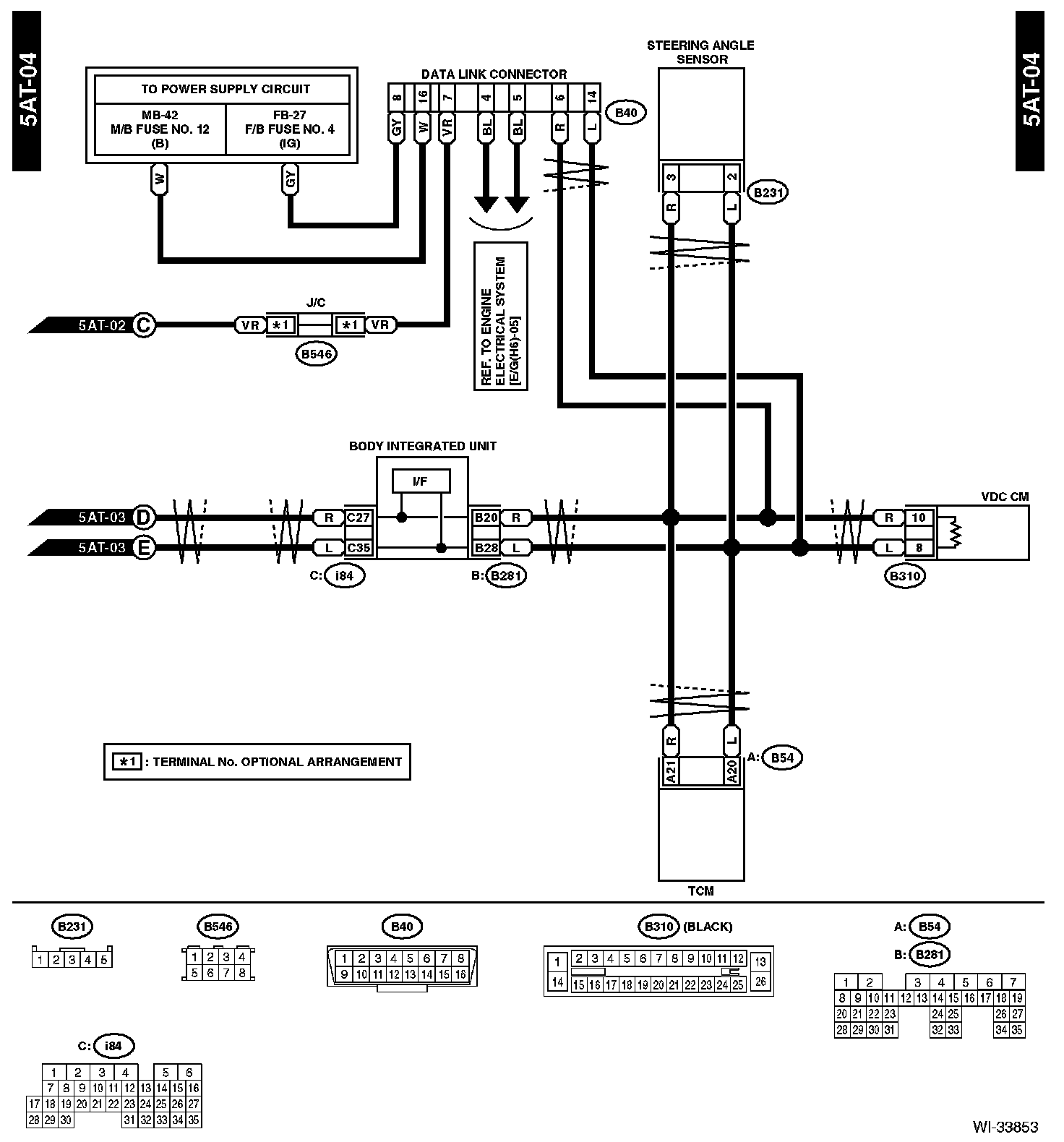

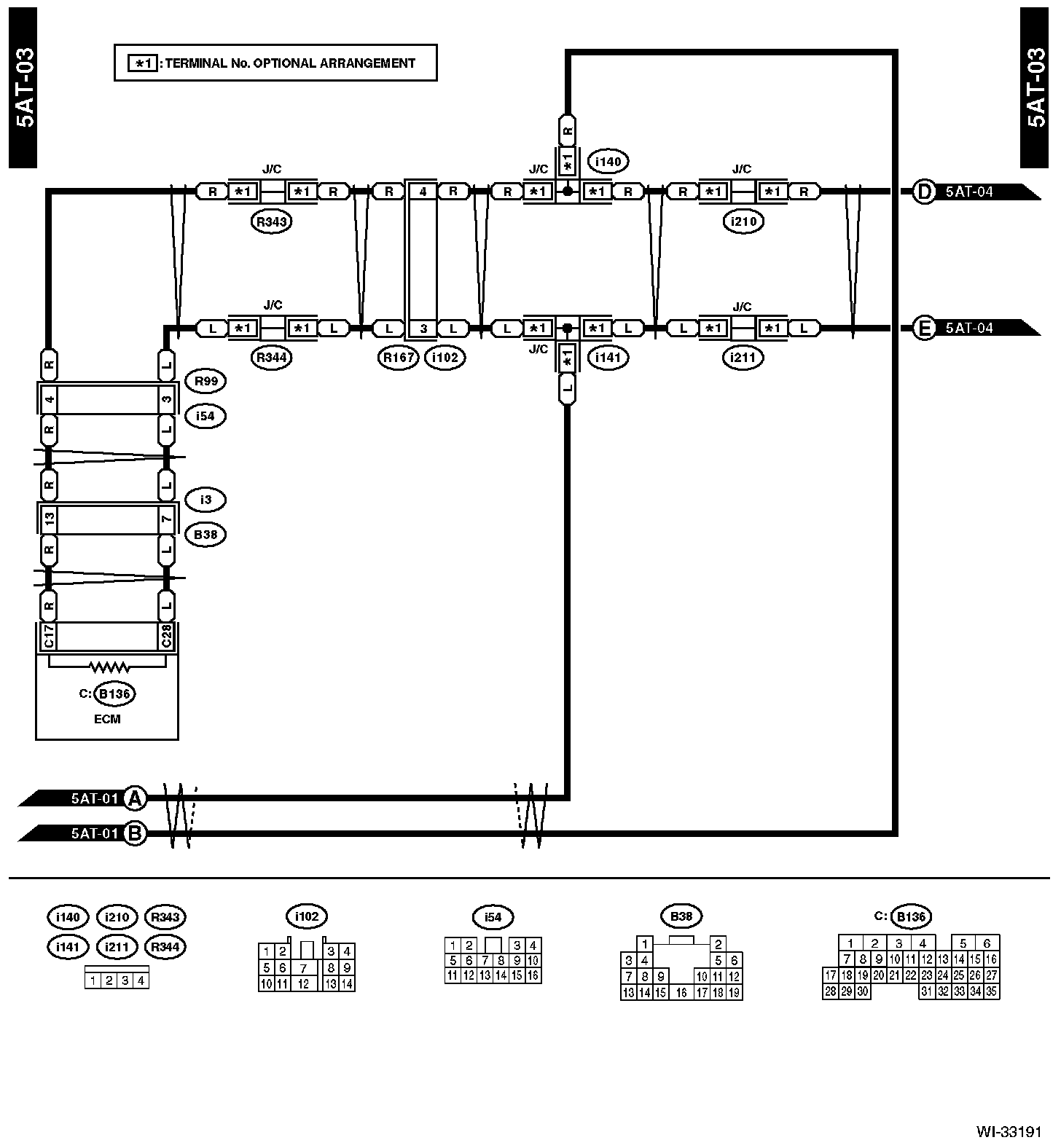

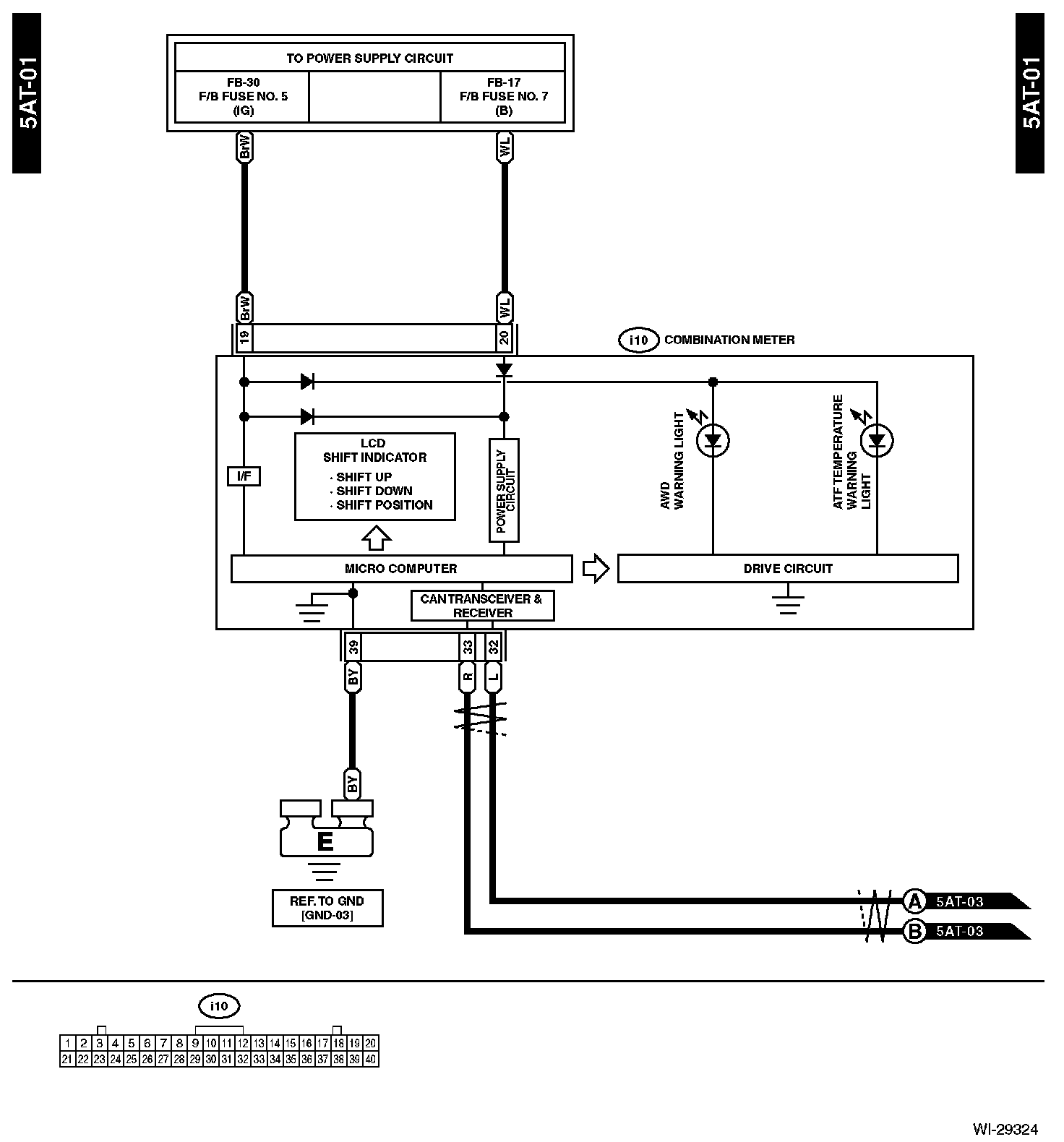

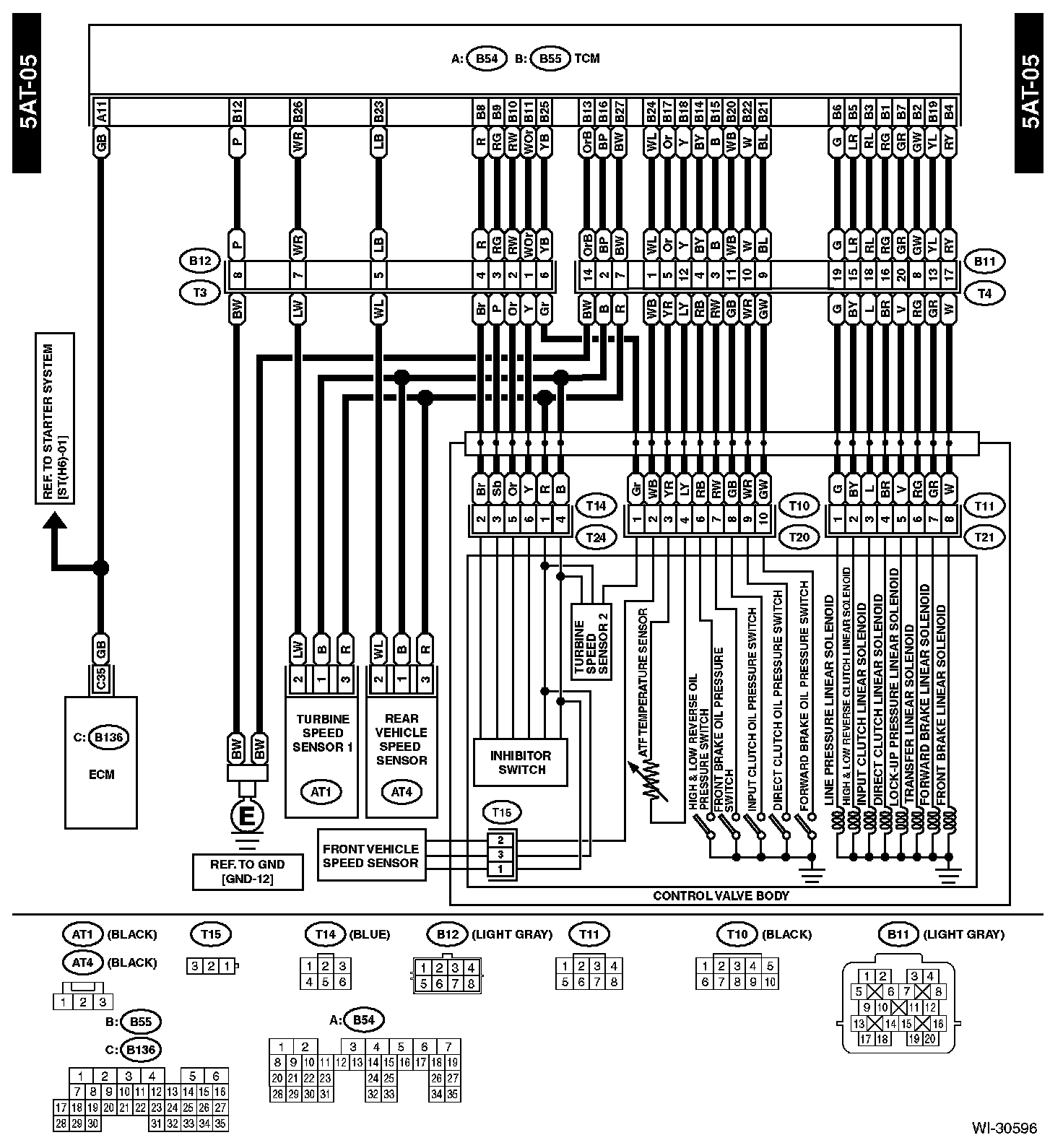

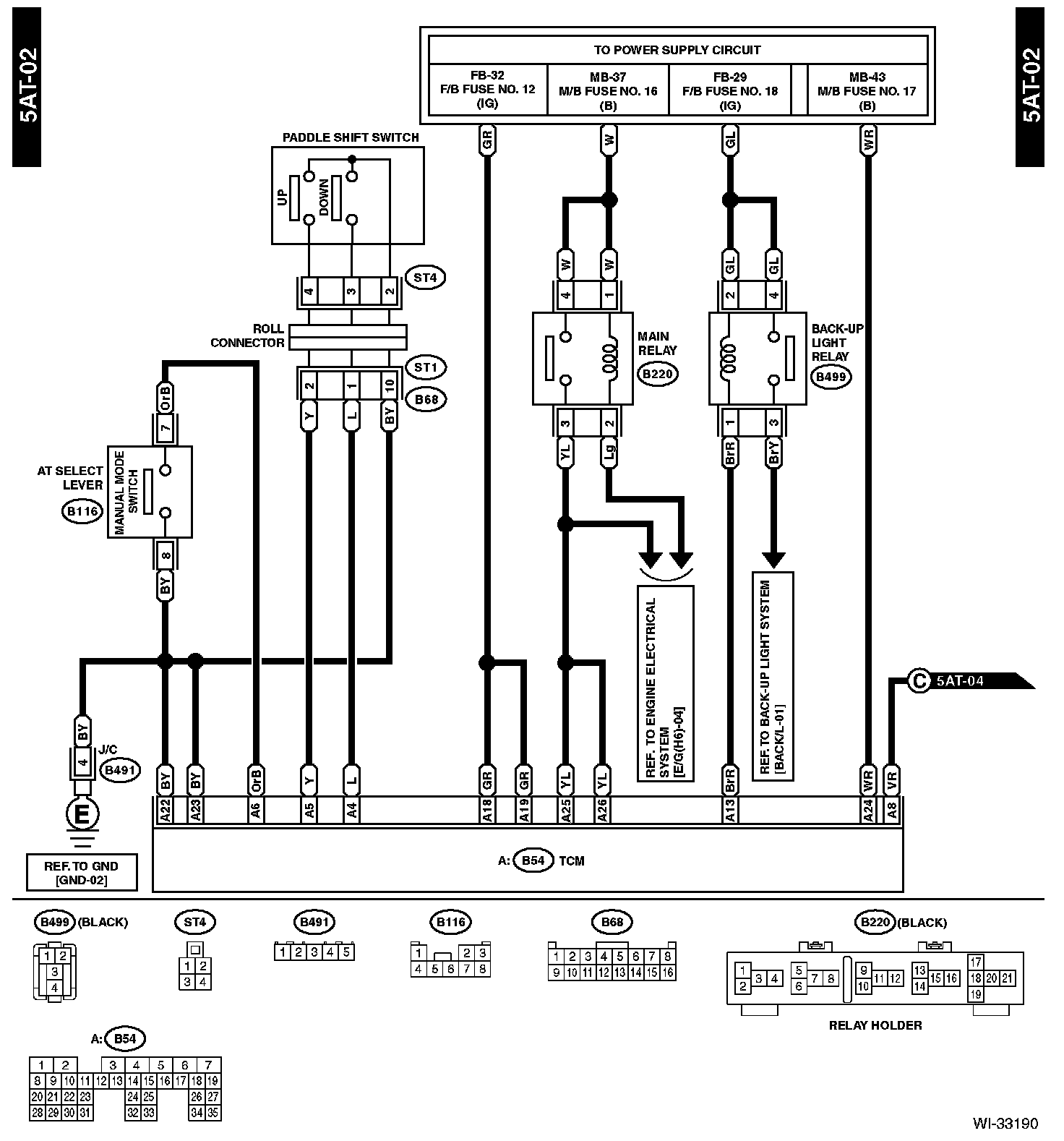

WIRING DIAGRAM


















Connector and Ground Locations: The locations of the Connectors or Grounds shown within these diagrams can be found via the connector or ground number at Vehicle Locations. Locations
