Extension Case: Installation

Attach the selected reduction driven gear shim to end surface of reduction driven gear with vaseline. Refer to , ADJUSTMENT , Reduction Driven Gear.
Install the extension case.
NOTE: Use a new gasket.

Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

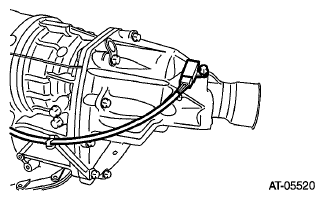

Fig 1: Identifying Extension Case
Courtesy of SUBARU OF AMERICA, INC.
Install the rear vehicle speed sensor.
Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

Fig 2: Identifying Rear Vehicle Speed Sensor
Courtesy of SUBARU OF AMERICA, INC.
Connect the rear vehicle speed sensor connector.

Fig 3: Identifying Rear Vehicle Speed Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the transmission assembly. Refer to , INSTALLATION , Automatic Transmission Assembly.
