Rearview Mirror (RCD Model)

Rearview Mirror (RCD Model)

REMOVAL

1. Disconnect the ground cable from battery.

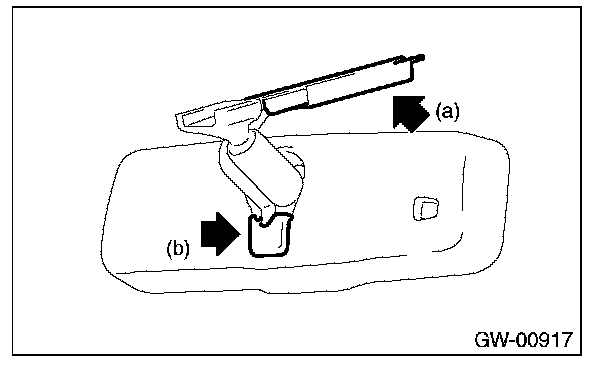

2. Remove the harness cover (a) and connector cap (b).







3. Disconnect the harness connector.

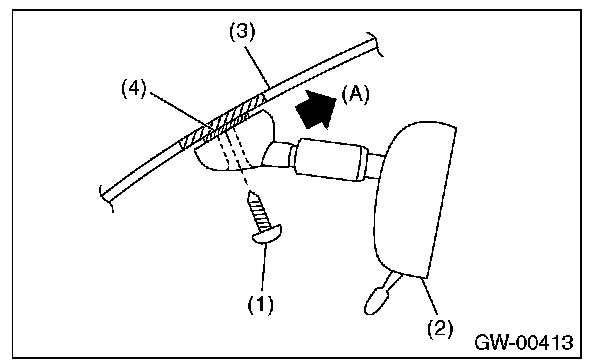

4. Remove the TORX(R) screw (1).
5. Slide the rearview mirror (2) to the upper side (A) of windshield glass (3), and remove the mirror from mount (4).

CAUTION:
- Be careful not to damage the mirror surface.
- Be careful not to damage the windshield glass.







INSTALLATION

CAUTION: When tightening the mounting TORX(R) screw, be sure to observe the tightening torque. Otherwise, the mount may be damaged in overtorque conditions.

Install in the reverse order of removal.

Tightening torque:
Refer to "COMPONENT" of "General Description". [Ref. to MIRROR, COMPONENT, General Description.]
