Brake Rotor/Disc



Brake Rotor

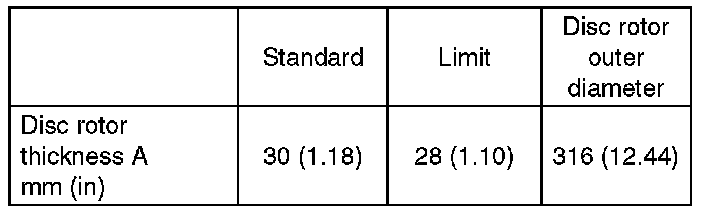

Front





Disc rotor runout limit 0.05 mm (0.0020 in)

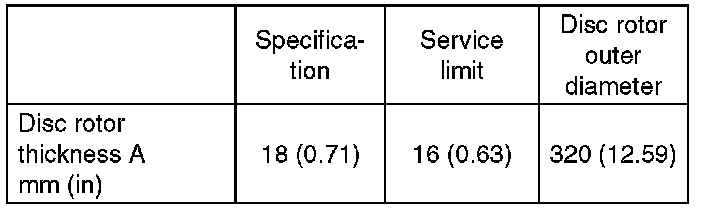

Rear





Disc rotor runout limit 0.05 mm (0.0020 in)
