Unit inspection
- Inspection of engine water temperature sensor
Courtesy of SUBARU OF AMERICA, INC.

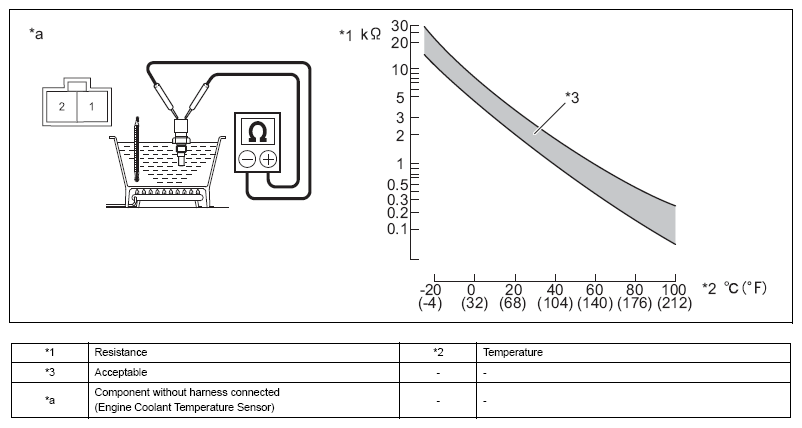

- Measure the resistance between the terminals.
RESISTANCE
| Inspection terminals |
Inspection conditions |
Standard value |
| 1 - 2 |
Approx. 20°C {68°F} |
2.35 to 2.65 kΩ |
| Approx. 80°C {176°F} |
0.305 to 0.331 kΩ |
CAUTION:
When the inspection is performed with the sensor immersed in water, be careful not to allow the ingress of water into the terminal part. After inspection is completed, wipe off the water drops from the sensor.
