Delivery (Test) Mode Connector
- Turn the ignition switch to ON and check that the malfunction indicator light starts blinking.
- If the light blinks, return the ignition key to LOCK.
Courtesy of SUBARU OF AMERICA, INC.

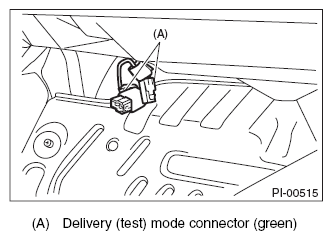

- Disconnect the delivery (test) mode connector under the passenger's seat.
- Then, turn the ignition key to ON again.
- If the malfunction indicator light blinks even though the delivery (test) mode connector is disconnected, carry out an engine diagnosis.

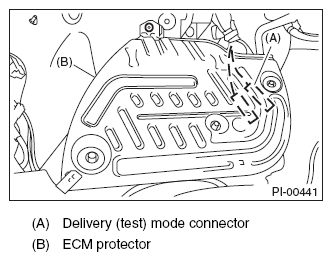

- Put the disconnected delivery (test) mode connector behind the ECM protector.
Courtesy of SUBARU OF AMERICA, INC.
