Power Assisted System

• Hose and tank

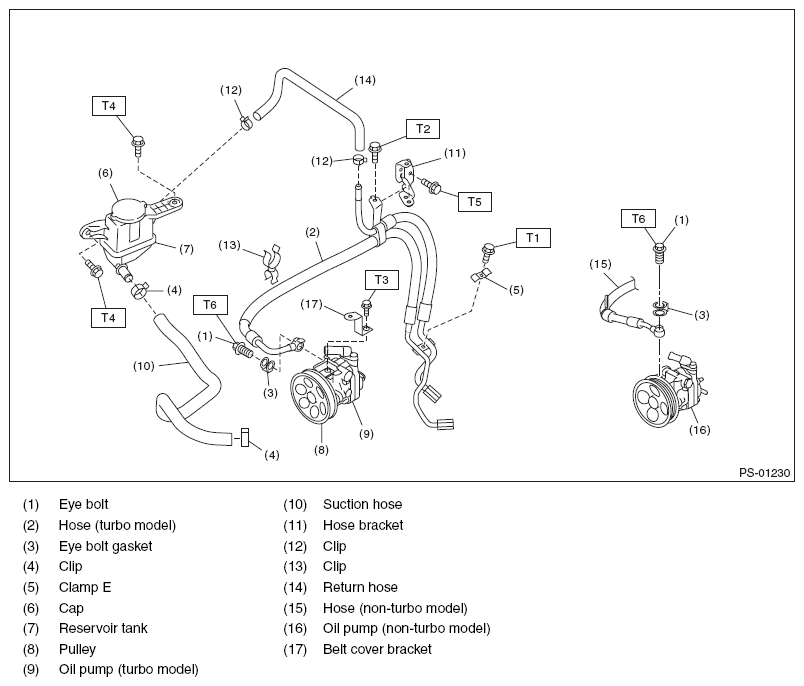

  Fig 1: Exploded View Of Power Assisted System With Torque Specifications (Hose And Tank)

  Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.76, 5.5)

T2: 10 (1.02, 7.4)

T3: 11 (1.12, 8.1)

T4: 13 (1.33, 9.6)

T5: 18 (1.84, 13.3)

T6: 40 (4.08, 29.5)

• Gearbox

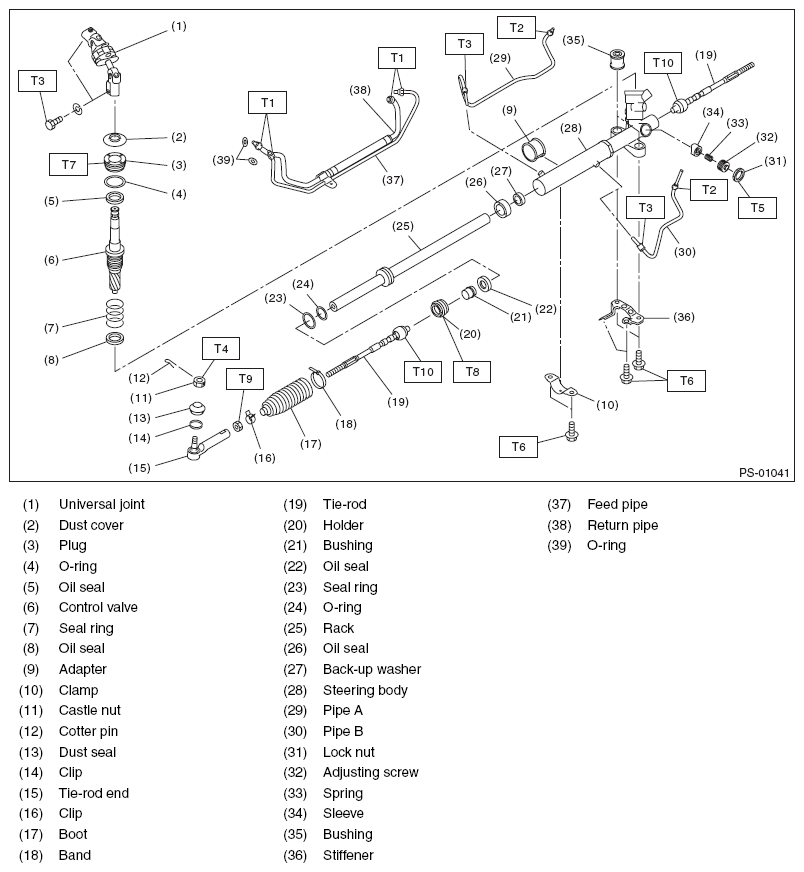

  Fig 2: Exploded View Of Power Assisted System With Torque Specifications (Gearbox)

  Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 15 (1.53, 11.1)

T2: 20 (2.04, 14.8)

T3: 24 (2.45, 17.7)

T4: 27 (2.75, 19.9)

T5: 39 (3.98, 28.8)

T6: 60 (6.12, 44.3)

T7: 64 (6.53, 47.2)

T8: 75 (7.65, 55.3)

T9: 85 (8.67, 62.7)

T10: 90 (9.18, 66.4)
