DTC P0122 Throttle/Pedal Position Sensor/Switch "A" Circuit Low: Wiring Diagram

Engine electrical system, non-turbo model < Refer to appropriate SYSTEM WIRING DIAGRAM. >

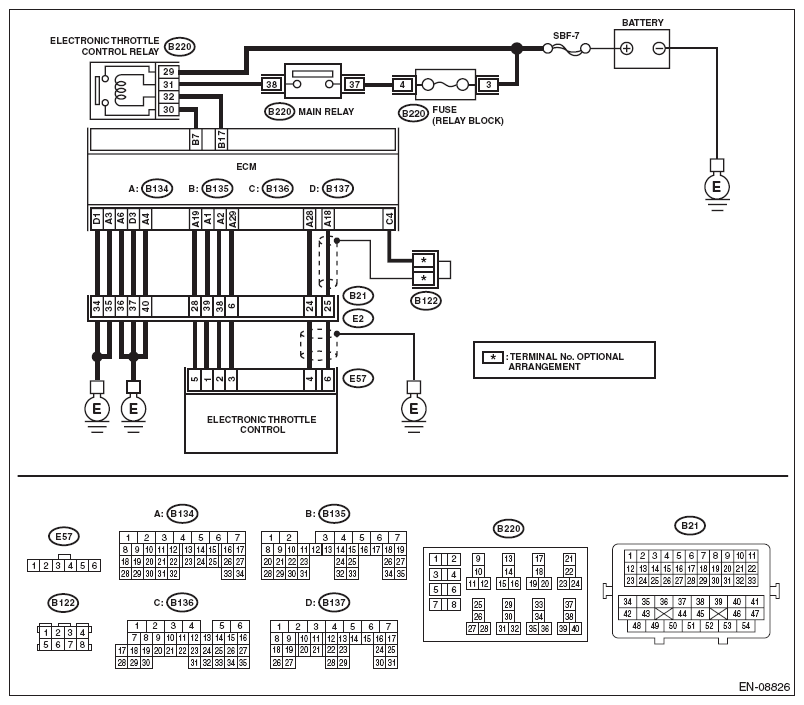

Fig 1: Throttle/Pedal Position Sensor - Wiring Diagram

G08570438

Courtesy of SUBARU OF AMERICA, INC.

DIAGNOSTIC PROCEDURE

Step	Check	Yes	No
1 CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL CONNECTOR. Turn the ignition switch to OFF. Disconnect the connectors from ECM and electronic throttle control. Measure the resistance between ECM and chassis ground. Connector & terminal (B134) No. 19 - Chassis ground: (B134) No. 18 - Chassis ground: (B134) No. 18 - (B136) No. 4:	Is the resistance 1 MΩ or more?	Go to step 2 .	Repair the short circuit to ground in harness between ECM and electronic throttle control connector.
2 CHECK SHORT CIRCUIT INSIDE THE ECM. Connect the connector to ECM. Measure the resistance between electronic throttle control connector and engine ground. Connector & terminal (E57) No. 6 - Engine ground:	Is the resistance 1 MΩ or more?	Replace the electronic throttle control. < Refer to THROTTLE BODY . >	Repair the short circuit to ground in harness between ECM and electronic throttle control connector. Replace the ECM if defective. < Refer to ENGINE CONTROL MODULE (ECM) . >
