DTC P2127 Throttle/Pedal Position Sensor/Switch "E" Circuit Low Input: Wiring Diagram

Engine electrical system, turbo model < Refer to appropriate SYSTEM WIRING DIAGRAM. >

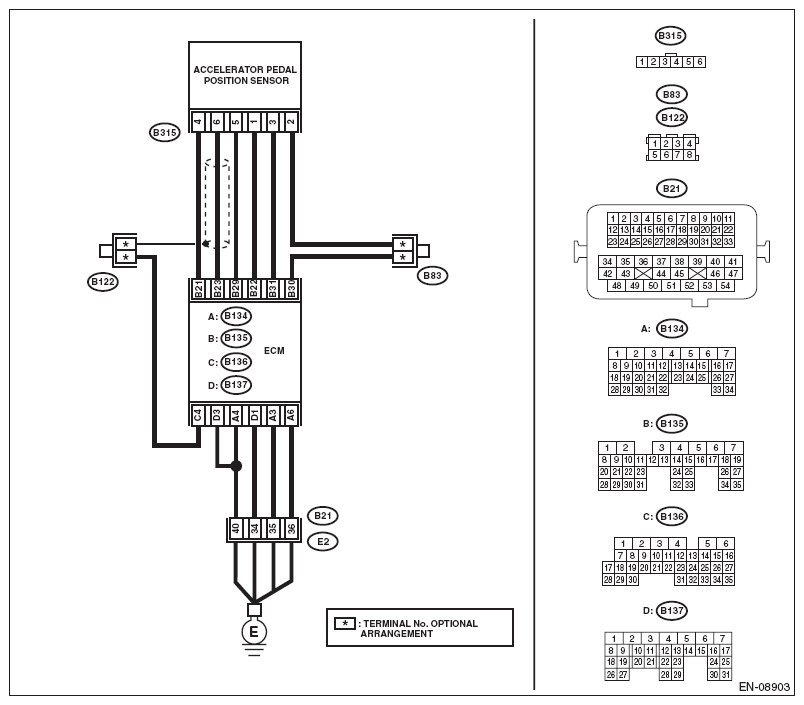

Fig 1: Throttle/Pedal Position Sensor / Switch "E" Circuit Low Input - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.
