System Block Diagram
Main signals used between stereo camera and relevant CM

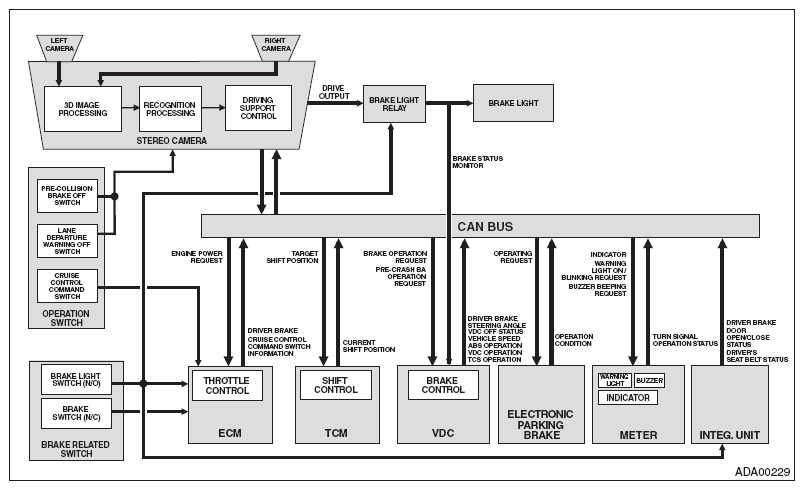

Fig 1: Stereo Camera And Relevant CM System Block Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
