Forward Clutch Assembly

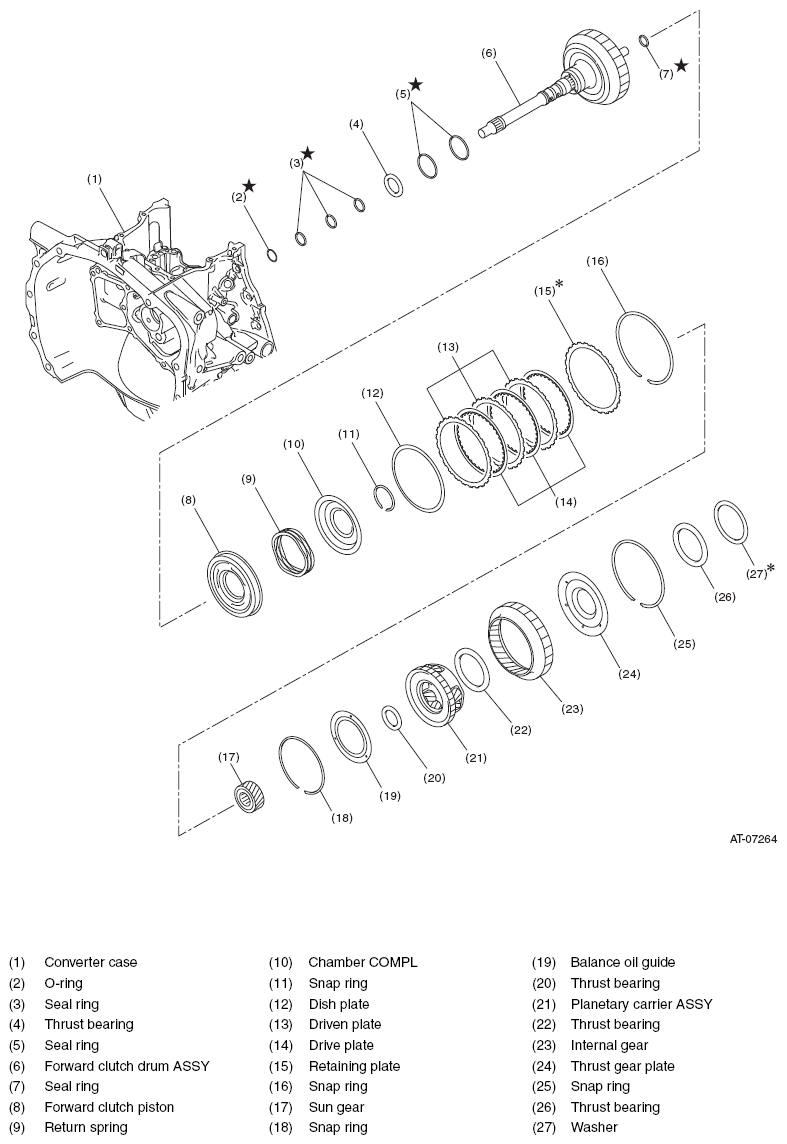

Fig 1: Identifying Forward Clutch Assembly Components
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
