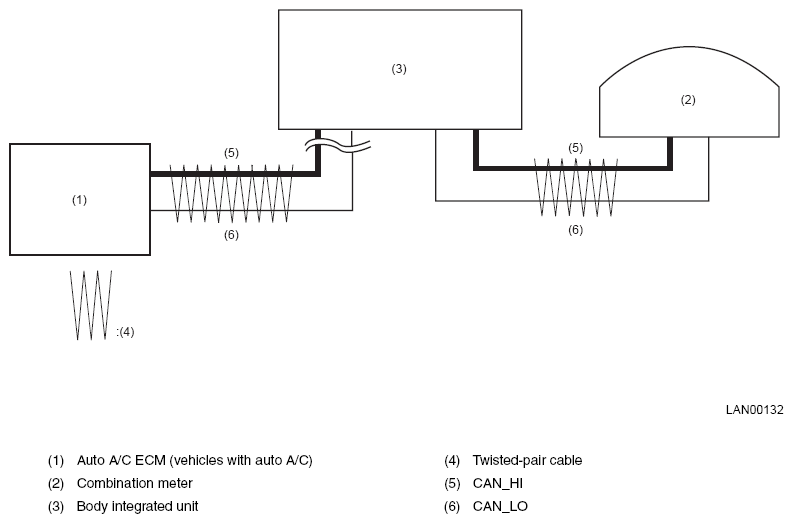

Units Connected Via Low-Speed LAN
| Vehicle type | Sedan | Wagon | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Navigation system | Yes | No | Yes | No | Yes | No | Yes | No | ||||||||||
| A/C unit (vehicles with auto A/C) | (1) | (1) | (1) | (1) | (1) | (1) | (1) | (1) | ||||||||||
| Combination meter | (1) | (1) | (1) | (1) | (1) | (1) | (1) | (1) | (1) | (1) | (1) | (1) | (1) | (1) | (1) | (1) | ||
| Body integrated unit | (1) | (1) | (1) | (1) | (1) | (1) | (1) | (1) | (1) | (1) | (1) | (1) | (1) | (1) | (1) | (1) | ||
|
||||||||||||||||||
NOTE:
In low-speed CAN, the system still allows communication even if one of the twisted-pair cable wires becomes open. (Errors will be detected.)

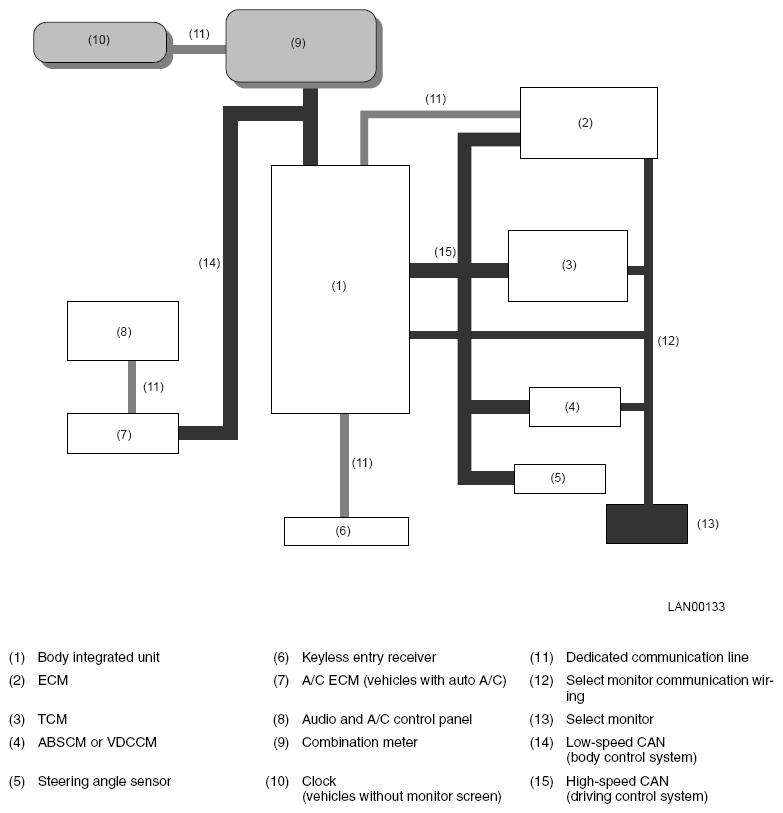

The high- and low-speed LANs described above, and the IE_Bus, dedicated communication lines, and select monitor communication, etc. comprise the vehicle's data communication system.
