Details of Judgment Value

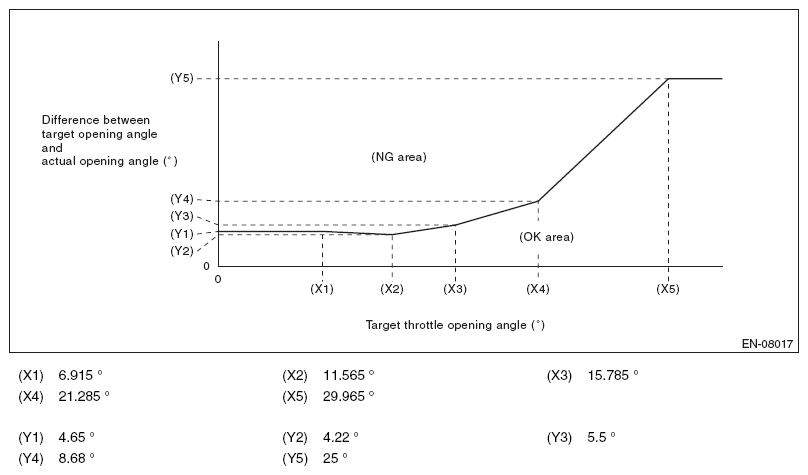

Fig 1: Difference Between Target Opening Angle And Actual Opening Angle Versus Target Opening Angle Graph
G08580855Courtesy of SUBARU OF AMERICA, INC.
