Front Disc Brake Assembly: Installation

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Apply a thin coat of Molykote M7439 or grease contained in the pad kit to the support.

Fig 1: Identifying Grease Applying Areas On Pad Kit To Support
Courtesy of SUBARU OF AMERICA, INC.
Install the support to the housing.
Tightening torque:

80 N.m (8.16 kgf-m, 59.0 ft-lb)
Apply a thin coat of Molykote M7439 or grease contained in the pad kit to the pad clip.

Fig 2: Identifying Grease Applying Areas On Pad Kit To Pad Clip
Courtesy of SUBARU OF AMERICA, INC.
Apply a thin coat of Molykote AS880N or grease contained in the pad kit to both surfaces of the pad inner shim.

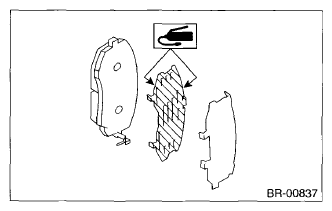

Fig 3: Identifying Grease Applying Areas On Pad Kit To Pad Inner Shim Surfaces
Courtesy of SUBARU OF AMERICA, INC.
Install the pad to support.
CAUTION:
- Be sure to install so that the pad return spring faces the input side of the direction of brake rotor rotation, as shown in the figure.
- Correctly install the pad return spring to the supporting surface of the pad clip as shown in the figure.
- If the pad return spring is deformed or damaged, replace the brake pad.

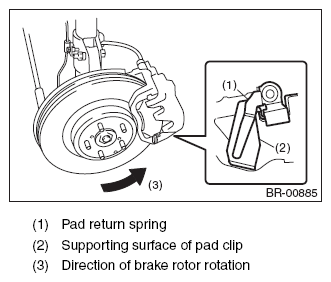

Fig 4: Installing Pad Return Spring To Supporting Surface Of Pad Clip
Courtesy of SUBARU OF AMERICA, INC.

NOTE:
Install the pad indicator in proper direction.

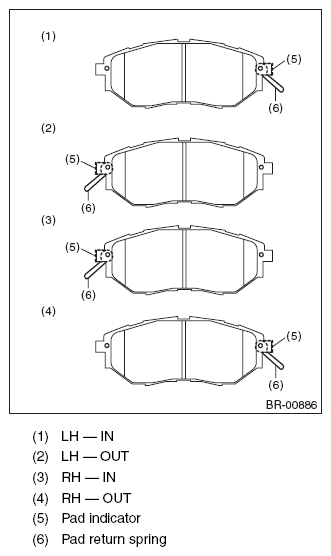

Fig 5: Identifying Pad Indicator Installation Position
Courtesy of SUBARU OF AMERICA, INC.
Install the caliper body to the support.
Tightening torque:

27 N.m (2.75 kgf-m, 19.9 ft-lb)
Connect the brake hose using a new brake hose gasket.
Tightening torque:

18 N.m (1.84 kgf-m, 13.3 ft-lb)
Bleed air from the brake system. < Refer to PROCEDURE , Air Bleeding. >
