Model Without Push Button Start: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

Engine electrical system, 3.6 L model (without push button start). See appropriate SYSTEM WIRING DIAGRAM article.

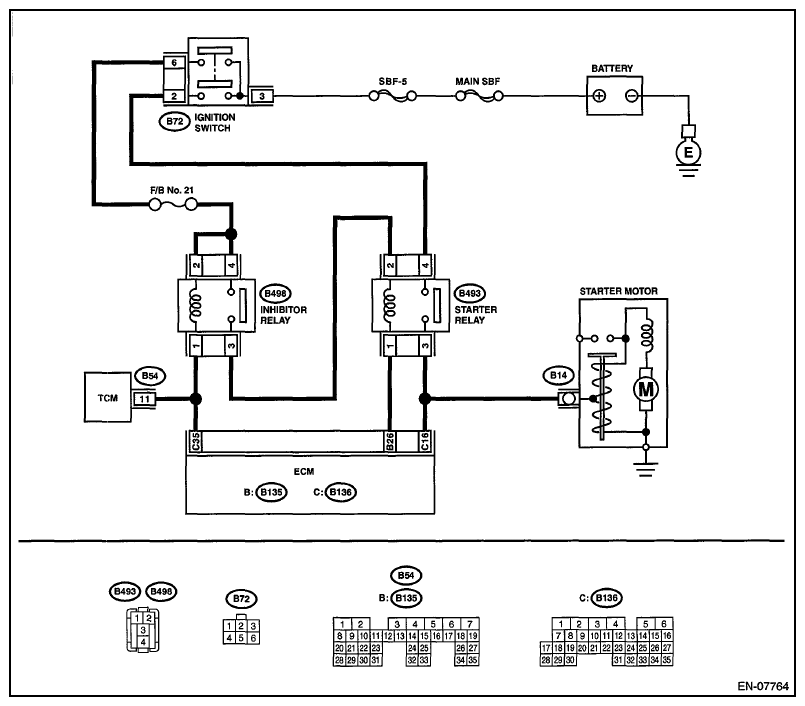

Fig 1: Starter Motor - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

DIAGNOSTIC PROCEDURE

Step	Check	Yes	No
1 CHECK FOR ANY OTHER DTC ON DISPLAY.	Is any other DTC displayed?	Check the appropriate DTC using the "List of Diagnostic Trouble Code (DTC)". Refer to LIST OF DIAGNOSTIC TROUBLE CODE (DTC) .	Go to step 2 .
