Reverse Brake Assembly: Disassembly

Remove the snap ring.
Remove the retaining plate, drive plate, driven plate and dish plate.

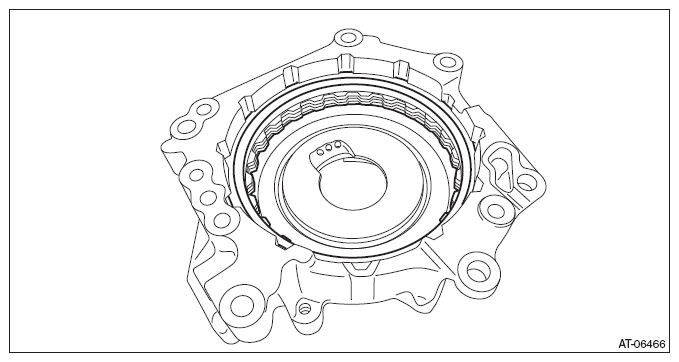

Fig 1: Identifying Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Compress the return spring using the ST to remove the snap ring.
ST 18762AA000 COMPRESSOR SPECIAL TOOL

Fig 2: Removing/Installing Snap Ring And Spring Retainer
Courtesy of SUBARU OF AMERICA, INC.
Using the ST, remove the snap ring and spring retainer.

Fig 3: Removing/Installing Snap Ring And Spring Retainer
Courtesy of SUBARU OF AMERICA, INC.
Remove the return spring.

Fig 4: Removing/Installing Return Spring
Courtesy of SUBARU OF AMERICA, INC.
Remove the reverse brake piston by blowing compressed air intermittently from reverse brake housing hole.

Fig 5: Locating Reverse Brake Housing Hole
Courtesy of SUBARU OF AMERICA, INC.
