Transfer Clutch: Installation

Install the thrust bearing.
NOTE: Make sure to install in the right direction.

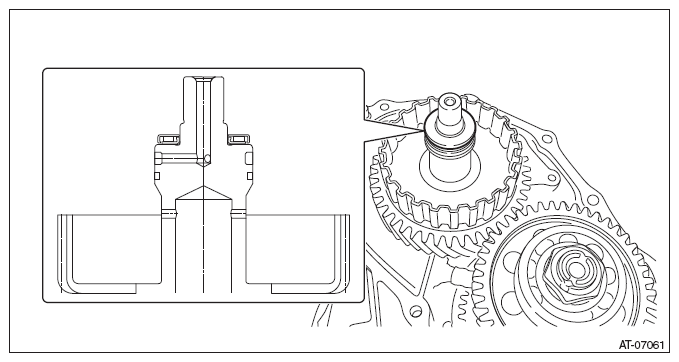

Fig 1: Identifying Thrust Bearing Installation Position
Courtesy of SUBARU OF AMERICA, INC.
Install the transfer clutch assembly.

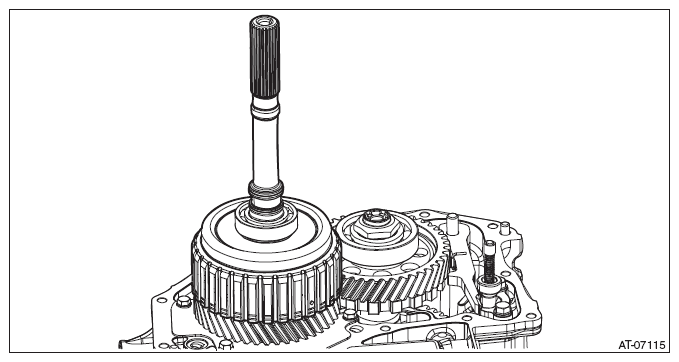

Fig 2: Identifying Transfer Clutch Assembly
Courtesy of SUBARU OF AMERICA, INC.
Select the transfer driven gear shim. Refer to ADJUSTMENT .
Attach the selected transfer driven gear shim to extension case with vaseline.
Remove the transfer clutch assembly.
Install the seal ring to the transfer clutch assembly.
NOTE:
- Use a new seal ring.
- When installing the seal ring, do not expand the seal ring too much.
- Apply CVTF to the seal rings.

  Fig 3: Locating Transfer Clutch Assembly Seal Rings
  Courtesy of SUBARU OF AMERICA, INC.
Install the seal ring to the transfer driven gear assembly.
NOTE:
- Use a new seal ring.
- When installing the seal ring, do not expand the seal ring too much.
- Apply CVTF to the seal rings.

  Fig 4: Locating Transfer Driven Gear Assembly Seal Ring
  Courtesy of SUBARU OF AMERICA, INC.
Install the transfer clutch assembly.
Install the extension case. Refer to INSTALLATION .
Install the transmission assembly to the vehicle. Refer to INSTALLATION .
