Transmission Case: Disassembly

Remove the oil stopper plate.

Fig 1: Locating Oil Stopper Plate Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove all plugs from the transmission case.

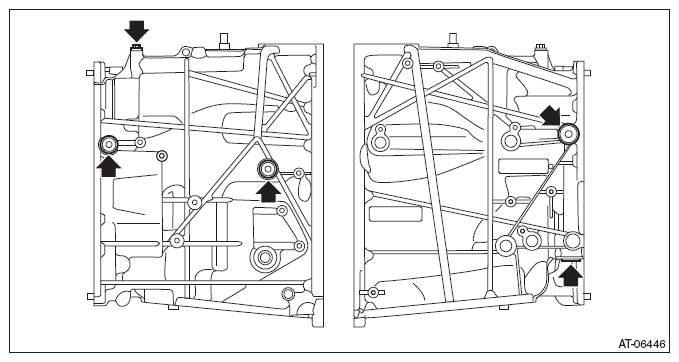

Fig 2: Locating Transmission Case Plugs
Courtesy of SUBARU OF AMERICA, INC.
Remove the oil seal using a screwdriver wrapped with cloth etc.

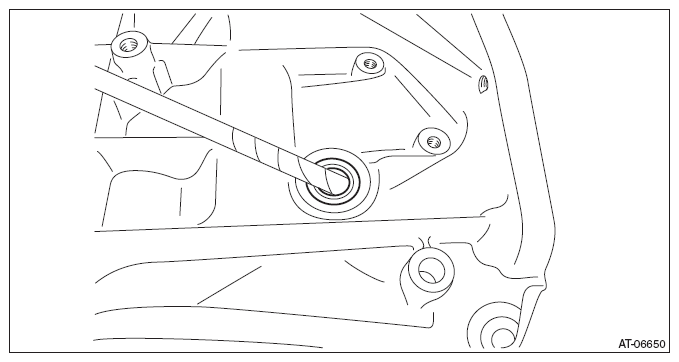

Fig 3: Removing Oil Seal Using Screwdriver Wrapped With Cloth
Courtesy of SUBARU OF AMERICA, INC.
Remove the CVTF filter cover and gasket.

Fig 4: Identifying CVTF Filter Cover And Gasket
Courtesy of SUBARU OF AMERICA, INC.
Remove the CVTF filter.

Fig 5: Removing/Installing CVTF Filter
Courtesy of SUBARU OF AMERICA, INC.
