120° Interval Difference Method

120° INTERVAL DIFFERENCE METHOD

Diagnostic value domg 120 = (omg 1 - omg 0) - (omg 7 - omg 1)/6
Judge as a misfire in the following cases.
  • domg 120 > judgment value of positive side
  • domg 121 ≤ judgment value of negative side

(Diagnostic value before 120° CA)

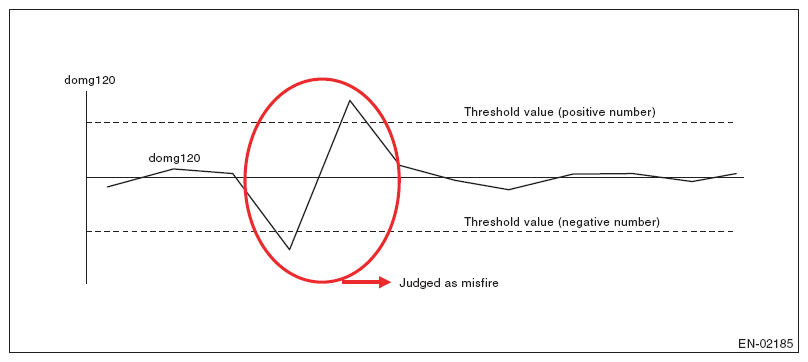

Fig 1: Misfire Judgement Graph (180° Interval Difference Method)
G07925993Courtesy of SUBARU OF AMERICA, INC.
