360° Interval Difference Method
360° INTERVAL DIFFERENCE METHOD
Diagnostic value
domg 360 = (omg 1 - omg 0) - (omg 4 - omg 3)
Misfire judgment
domg 360 > Judgment value → Judge as misfire

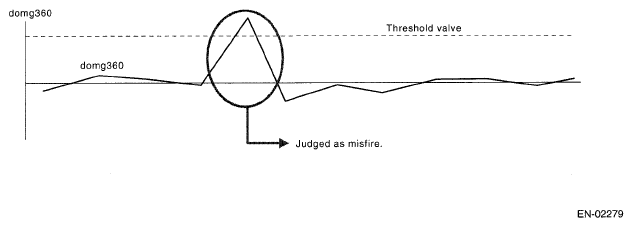

Fig 1: Misfire Judgement Graph (360° Interval Difference Method)
Courtesy of SUBARU OF AMERICA, INC.
