Judgment Value

JUDGMENT VALUE

Malfunction Criteria	Threshold Value
PMON - (PMOF1 + PMOF2)/2	< 1.6 kPa (11.8 mmHg, 0.5 inHg)

Time Needed for Diagnosis: 1 time

Malfunction Indicator Light Illumination: Illuminates when malfunction occurs in 2 continuous driving cycles.

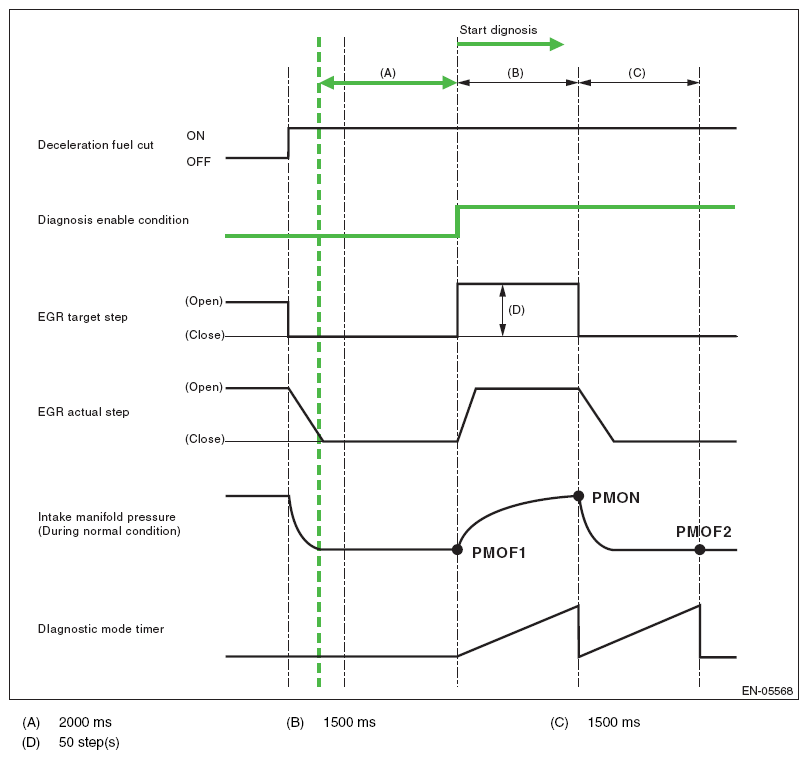

Fig 1: EGR Characteristics Graph

Courtesy of SUBARU OF AMERICA, INC.

Judge as OK and clear the NG if the following conditions are established.

JUDGMENT VALUE

Malfunction Criteria	Threshold Value
PMON - (PMOF1 + PMOF2)/2	≥ 1.6 kPa (11.8 mmHg, 0.5 inHg)

Time Needed for Diagnosis: 1 time
