DTC P0134 O2 Sensor Circuit No Activity Detected (Bank 1 Sensor 1): Wiring Diagram

Engine electrical system Refer to Engine Electrical System Wiring Diagram.

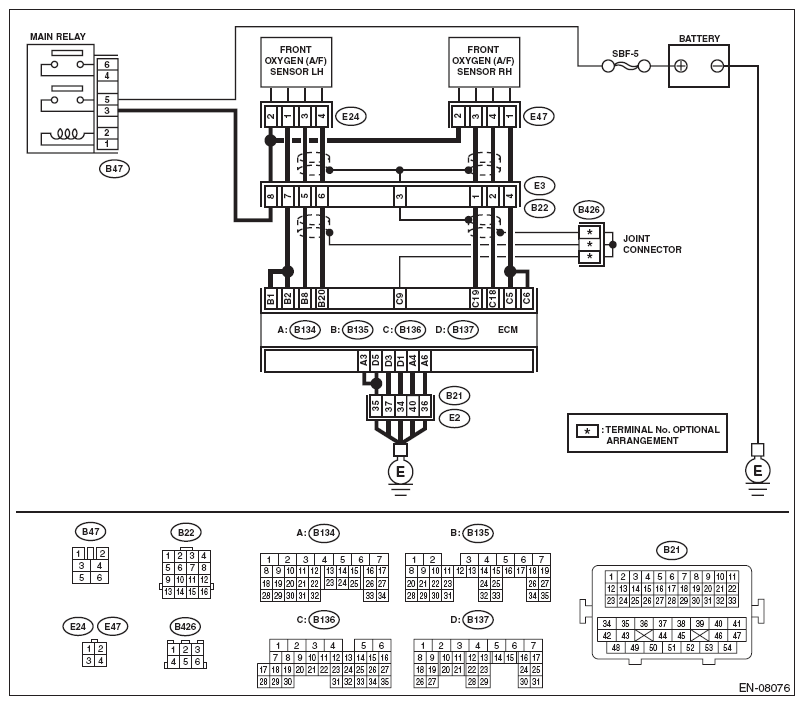

Fig 1: Oxygen Sensor - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.
