The Steering Lock Cannot Be Released (Cannot Start The Engine) (Without The ID Code Box)
>>
Circuit figure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit figure

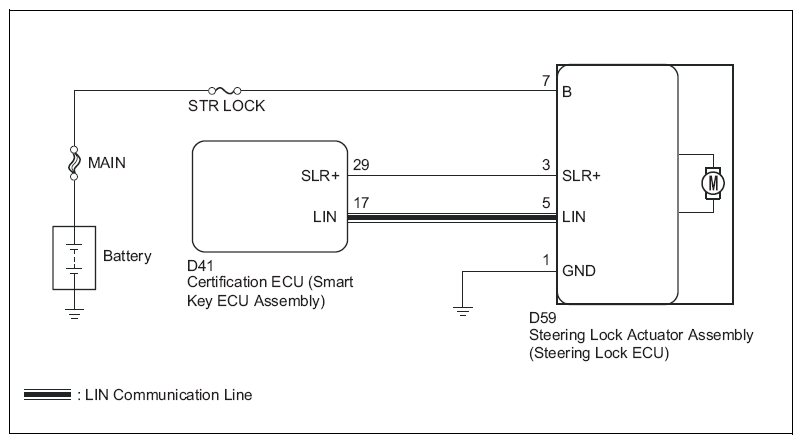

Fig 1: Steering Lock - Circuit Diagram (Without ID Code Box)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
